Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refer to APPROVED EQUIPMENT FOR COLLISION REPAIR CAUTION .

Disable the SIR system. Refer to SIR DISABLING AND ENABLING .
Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
Repair as much of the damage as possible to factory specifications. Refer to DIMENSIONS - BODY .
Note the location and remove the sealers and anti-corrosion materials from the repair area, as necessary. Refer to ANTI-CORROSION TREATMENT AND REPAIR .

Fig 1: Identifying Rear Rail
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Do not damage any inner panels or reinforcements.

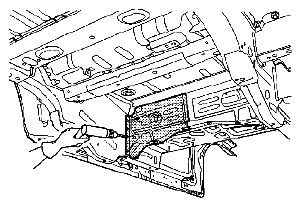

Locate and drill out all factory welds on the number 4 bar and the floor reinforcement. Note the number and location of the welds for installation.

Fig 2: Removing Number Bar And Floor Reinforcement
Courtesy of SUZUKI OF AMERICA CORP.

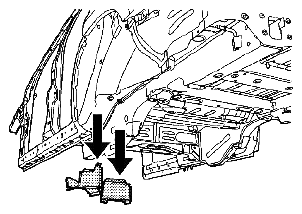

Remove the number 4 bar and the floor reinforcement.

Fig 3: Drilling Factory Welds On Outer Rail Reinforcement
Courtesy of SUZUKI OF AMERICA CORP.

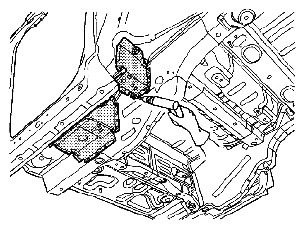

Locate and drill out all factory welds on the outer rail reinforcement. Note the number and location of the welds for installation.

Fig 4: Removing Rail Reinforcements Of Vehicle
Courtesy of SUZUKI OF AMERICA CORP.

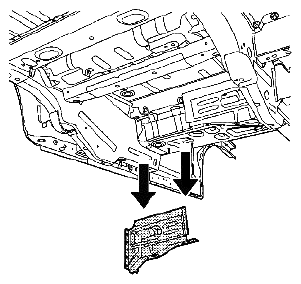

Remove the rail reinforcements from the vehicle.

Fig 5: Drilling Factory Welds On Rear Rail
Courtesy of SUZUKI OF AMERICA CORP.

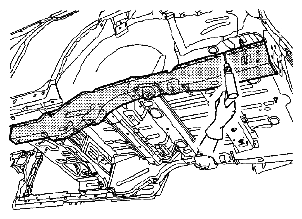

Locate and drill out all factory welds on the rear rail. Note the number and location of the welds for installation.

Fig 6: Removing Rear Rail
Courtesy of SUZUKI OF AMERICA CORP.
Remove the damaged rear rail from the vehicle.
