Rear Energy Absorber Replacement
WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT SPECIFICATION
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper lower fascia. Refer to REAR BUMPER LOWER FASCIA REPLACEMENT . |
|

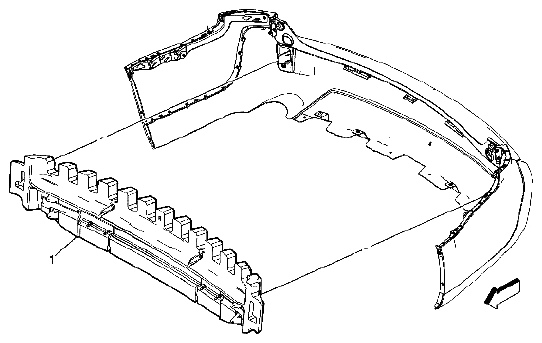

| 1 | Rear Energy Absorber Tip: Absorber is held in by two flexible tabs. |
