Front Bumper Lower Fascia Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

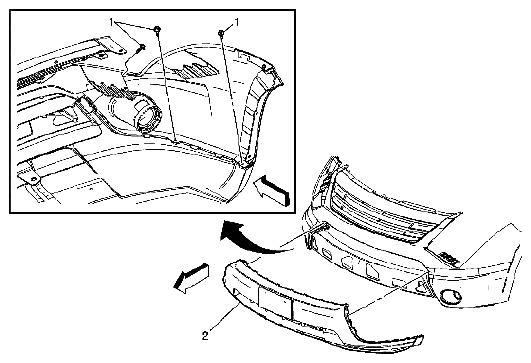

Fig 1: Identifying Front Bumper Lower Fascia And Front Bumper Lower Fascia Bolts

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT SPECIFICATION

Callout	Component Name
Preliminary Procedure Remove the front bumper lower fascia grille. Refer to FRONT BUMPER LOWER FASCIA GRILLE REPLACEMENT .
1	Front Bumper Lower Fascia Bolts (Qty: 6) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2.5 N.m (22 lb in)
2	Front Bumper Lower Fascia Tip: Transfer any parts as needed.
