Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

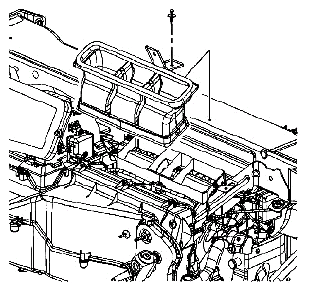

Fig 1: Identifying Windshield Defrost Duct
G05470582Courtesy of SUZUKI OF AMERICA CORP.
  1. Inspect the windshield defrost duct seals. If damaged, replace using Kent Industries adhesive back foam tape P/N 46485 or equivalent.
  2. Install the windshield defrost duct to the HVAC module.
  3. Install the instrument panel upper trim panel. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT .
