Compressor Hose Assembly Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

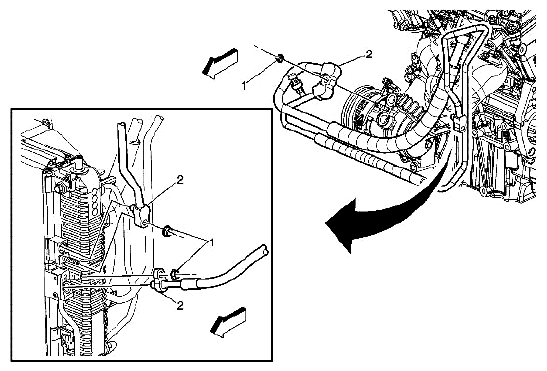

Fig 1: Identifying Compressor Hose Assembly Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure Recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING . Remove the cooling fan and shroud. Refer to COOLING FAN AND SHROUD REPLACEMENT Disconnect the high pressure switch electrical connector.
1	Compressor Hose Assembly Nut (Qty: 2). CAUTION: Refer to FASTENER NOTICE . Tightening torque 20 N.m (15 lb ft)
2	A/C Compressor Assembly Hose Procedure Remove and discard the sealing washer. Refer to SEALING WASHER REPLACEMENT .
