Installation Procedure

Special Tool

J 28467-B Universal Engine Support Fixture

J-28467-13 Engine Support Fixture Adapters

J 42451-1 Engine Support Adapter

J 36462-A Engine Support Adapter Leg Set

J 28467-7A Bolt Hook

J 28467-34 Lift Hook Wing Nut & Washer

Fig 1: Identifying Engine Support Fixture

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
2. Pull each end of the hood rear seal away from the cowl panel flange near both strut towers.
3. Install three J-28467-13 (1) and two J 28467-5 strut tower adapters (2) to the top of the left and right strut tower.
4. Install a 127 cm (50 in) engine support fixture cross bar J-28467-B (3) transversely across the vehicle between both J 28467-5 strut tower adapters (2).
5. Insert safety pins J-28467-10 (4) through the J 28467-5 strut tower adapters (2) and the cross bar (3) to prevent movement.
   Fig 2: Identifying Engine Support Bracket J 42451-1

   Courtesy of SUZUKI OF AMERICA CORP.

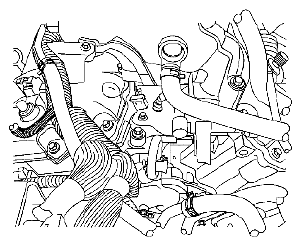

6. Install the engine support bracket J 42451-1 to the engine.
   CAUTION: Refer to FASTENER NOTICE .
   Fig 3: Identifying Alternator Bolt

   Courtesy of SUZUKI OF AMERICA CORP.

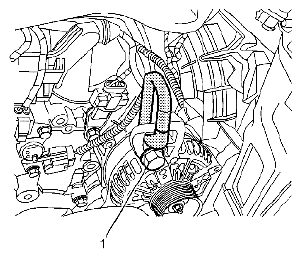

7. Remove the alternator bolt (1), then install the alternator bolt with the engine support bracket J 42451-1 to the engine.

   Tightening torque

   Tighten the bolts to 50 N.m (37 lb ft)  .

   Fig 4: Identifying 58 cm (23 in) Engine Support Fixture Cross Bars And J 36462-A Leg Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
8. Position two 58 cm (23 in) engine support fixture cross bars (1) longitudinally with two J 36462-A leg assembly (2).
9. Install two J 28467-1A clamp (3) to secure the longitudinal mounted cross bar to the transverse mounted cross bar.
   Fig 5: Identifying Lift Hook Wing Nut J-28467-34 And Lift Hook Bracket J-28467-6A

   Courtesy of SUZUKI OF AMERICA CORP.
10. Assemble the lift hook wing nut J-28467-34 and the lift hook bracket J-28467-6A to the lift hook J-28467-7A.
    Fig 6: Identifying Bracket Assembly And Longitudinal Mounted Cross Bar

    Courtesy of SUZUKI OF AMERICA CORP.
11. Install the lift hook and bracket assembly (1) to the longitudinal mounted cross bar (2).
    Fig 7: Identifying J 28467-7A Lift Hook And Rear Engine Lift Bracket J-42451-1

    Courtesy of SUZUKI OF AMERICA CORP.

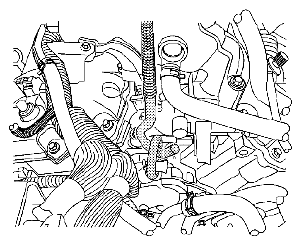

12. Position the J 28467-7A lift hook to the rear engine lift bracket J-42451-1 (2).
    Fig 8: Identifying Lift Hook Wing Nut J-28467-34, Lift Hook Bracket J-28467-6A And Lift Hook J-28467-7A

    Courtesy of SUZUKI OF AMERICA CORP.
13. Assemble the lift hook wing nut J-28467-34 and the lift hook bracket J-28467-6A to the lift hook J-28467-7A.
    Fig 9: Identifying Lift Hook And Bracket Assembly And Longitudinal Mounted Cross Bar

    Courtesy of SUZUKI OF AMERICA CORP.
14. Install the lift hook and bracket assembly (1) to the longitudinal mounted cross bar (2).
    Fig 10: Identifying J 28467-7A Bolt Hook And Front Engine Lift Bracket J-42451-1

    Courtesy of SUZUKI OF AMERICA CORP.

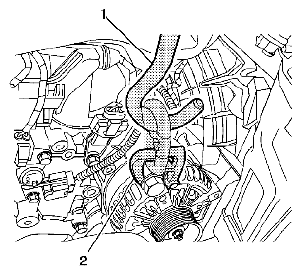

15. Position the J 28467-7A bolt hook (1) to the front engine lift bracket J-42451-1 (2).
    Fig 11: Identifying Wing Nuts J-28467-34

    Courtesy of SUZUKI OF AMERICA CORP.
16. Evenly tighten both wing nuts J-28467-34 (1) until the engine weight is supported by the engine support fixture and no longer carried by the engine mounts.
