Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

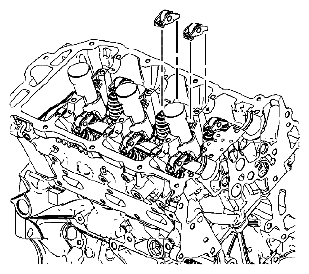

Fig 1: Identifying Rocker Arms
G05465344Courtesy of SUZUKI OF AMERICA CORP.
  1. Install the rocker arms. Refer to VALVE ROCKER ARM INSTALLATION - LEFT SIDE .
  2. Install the applicable camshaft(s). Refer to CAMSHAFT REPLACEMENT - LEFT SIDE .
