Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

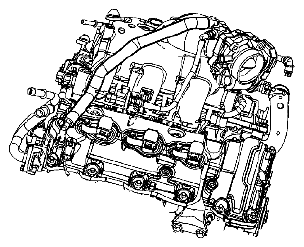

Fig 1: Identifying Fresh Air Positive Crankcase Ventilation Line

Courtesy of SUZUKI OF AMERICA CORP.

Remove the engine cover. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
Remove the air cleaner outlet duct.
Reposition the fresh air positive crankcase ventilation (PCV) line from the air cleaner inlet tube.

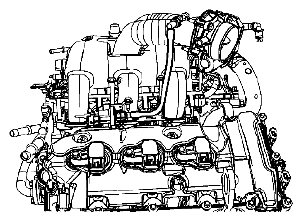

Fig 2: Identifying Electronic Throttle Control Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the Electronic Throttle Control (ETC) electrical connector.

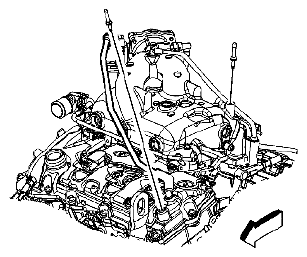

Fig 3: Identifying PCV Line On Top Of Intake Manifold
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the PCV line from the top of the intake manifold and reposition aside.

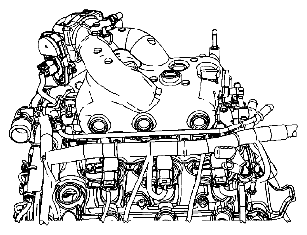

Fig 4: Identifying Evaporative Emissions Canister Purge Line
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the evaporative emissions (EVAP) canister purge line and reposition aside.

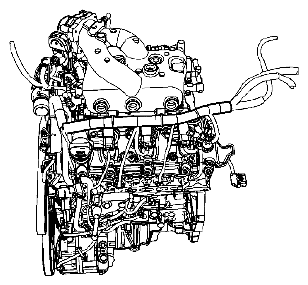

Fig 5: Identifying Bleed Pipe Bolts And Hose Clamp
Courtesy of SUZUKI OF AMERICA CORP.
Remove the bleed pipe bolts (1).
Remove the bleed pipe hose clamp (2).
Reposition the bleed pipe.
Remove the brake booster vacuum hose from the intake manifold.

Fig 6: Identifying Engine Harness Retaining Clips
Courtesy of SUZUKI OF AMERICA CORP.
Remove the engine harness retaining clips.

Fig 7: Identifying Upper Intake Manifold And Gasket
Courtesy of SUZUKI OF AMERICA CORP.
Remove the upper intake retaining bolts.
Remove the upper intake manifold and gasket. Discard gasket.
If replacing the upper intake manifold complete the following steps:
1. Remove the evaporative emissions (EVAP) purge solenoid valve. Refer to EVAPORATIVE EMISSION CANISTER PURGE SOLENOID VALVE REPLACEMENT .
2. Remove the throttle body. Refer to THROTTLE BODY ASSEMBLY REPLACEMENT .
