Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

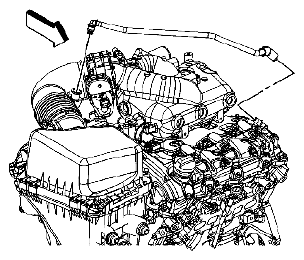

Fig 1: Identifying Positive Crankcase Ventilation Tube (Front)
G05465204Courtesy of SUZUKI OF AMERICA CORP.
  1. Connect the PCV air pipe to the valve cover valve.
  2. Connect the PCV fresh air pipe to the air cleaner duct.
  3. Install the engine cover. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
