Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

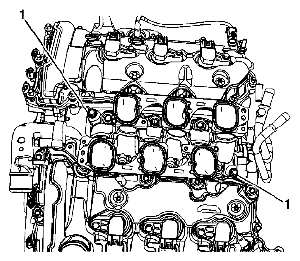

Fig 1: Identifying Lower Intake Manifold Bolts
G05465221Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the fuel injectors and fuel rail. Refer to FUEL INJECTOR AND FUEL RAIL REPLACEMENT .
  2. Remove the lower intake manifold bolts (1).
  3. Remove the lower intake manifold and gasket from engine. Discard the gasket.
  4. Clean and inspect the intake manifold and the sealing surfaces. Refer to INTAKE MANIFOLD CLEANING AND INSPECTION .
