Intake Manifold Removal

Reference: EXHAUST MANIFOLD REMOVAL - RIGHT SIDE

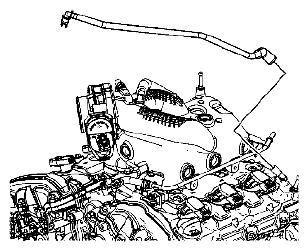

Fig 1: Identifying Fresh Air Positive Crankcase Ventilation Hose

Courtesy of SUZUKI OF AMERICA CORP.

1. Disconnect and remove the fresh air positive crankcase ventilation (PCV) hose from the left camshaft cover fitting.

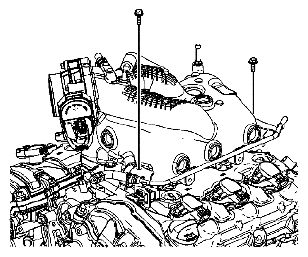

   Fig 2: Identifying Engine Coolant Air Bleed Pipe And Bracket Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the engine coolant air bleed pipe bracket bolts from the upper intake manifold.

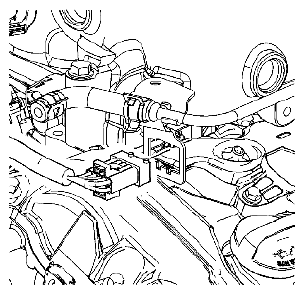

   Fig 3: Identifying Fuel Injector Harness Connector

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove the fuel injector harness connector from the engine coolant air bleed pipe bracket.

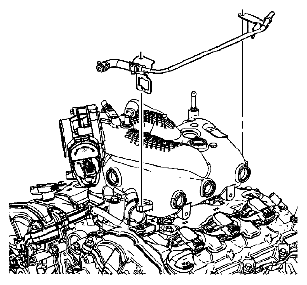

   Fig 4: Identifying Engine Coolant Air Bleed Pipe

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove the engine coolant air bleed pipe.
   Fig 5: Identifying Dirty Air PCV Hose

   Courtesy of SUZUKI OF AMERICA CORP.
5. Disconnect and remove the dirty air PCV hose from the intake manifold and the right camshaft cover fitting.
   Fig 6: Identifying Intake Manifold-To-Solenoid Evaporative Emissions Hose

   Courtesy of SUZUKI OF AMERICA CORP.
6. Disconnect and remove the intake manifold-to-solenoid evaporative emissions (EVAP) hose from the intake manifold and from the EVAP solenoid.

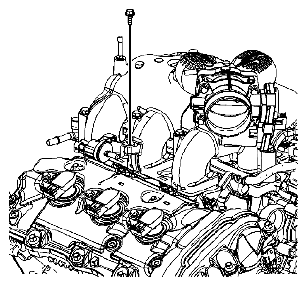

   Fig 7: Identifying EVAP Solenoid Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove the EVAP solenoid bolt.

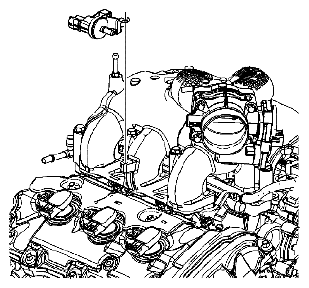

   Fig 8: Identifying EVAP Solenoid

   Courtesy of SUZUKI OF AMERICA CORP.
8. Remove the EVAP solenoid.

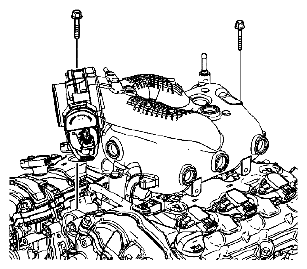

   Fig 9: Identifying Long Intake Manifold Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
9. Remove the long intake manifold bolts.
   Fig 10: Identifying Short Intake Manifold Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
10. Remove the short intake manifold bolts.

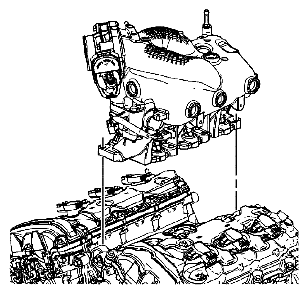

    Fig 11: Identifying Intake Manifold Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
11. Remove the intake manifold assembly.

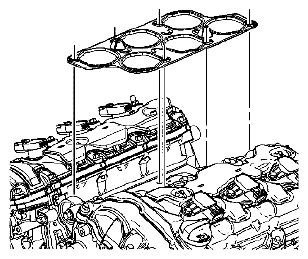

    Fig 12: Identifying Lower Intake Manifold Gasket

    Courtesy of SUZUKI OF AMERICA CORP.
12. Remove and discard the lower intake manifold gasket.

    Reference: INTAKE MANIFOLD DISASSEMBLE
