Intake Manifold Installation

Reference: INTAKE MANIFOLD ASSEMBLE

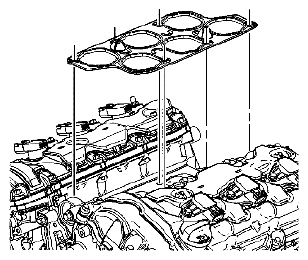

Fig 1: Identifying Lower Intake Manifold Gasket

Courtesy of SUZUKI OF AMERICA CORP.

1. Install the NEW lower intake manifold gasket.

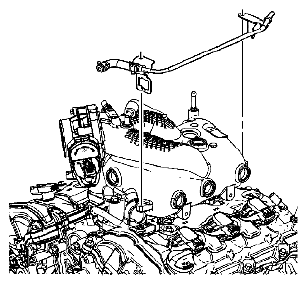

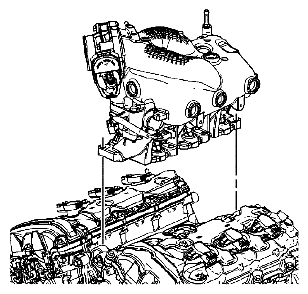

   Fig 2: Identifying Intake Manifold Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install the intake manifold assembly.

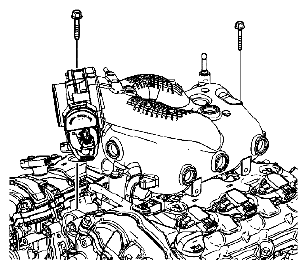

   Fig 3: Identifying Short Intake Manifold Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
   CAUTION: Refer to FASTENER NOTICE .
3. Loosely install the short intake manifold bolts.

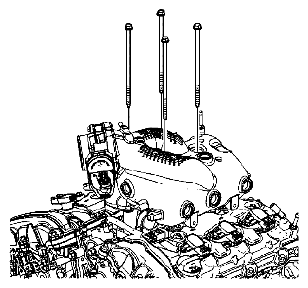

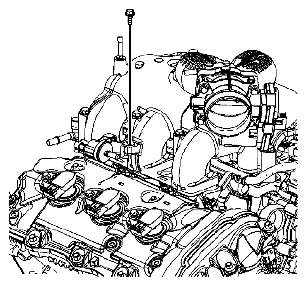

   Fig 4: Identifying Long Intake Manifold Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
4. Loosely install the long intake manifold bolts.

   Tightening torque

   Tighten all of the intake manifold bolts to 23 N.m (17 lb ft)  .

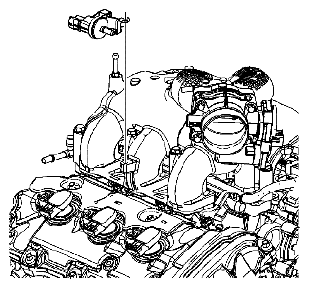

   Fig 5: Identifying Evaporative Emissions Solenoid

   Courtesy of SUZUKI OF AMERICA CORP.
5. Install the evaporative emissions (EVAP) solenoid.
   Fig 6: Identifying EVAP Solenoid Bolt

   Courtesy of SUZUKI OF AMERICA CORP.
6. Install the EVAP solenoid bolt

   Tightening torque

   Tighten the EVAP solenoid bolt to 10 N.m (89 lb in)  .

   Fig 7: Identifying Intake Manifold-To-Solenoid EVAP Hose

   Courtesy of SUZUKI OF AMERICA CORP.
7. Install and connect the intake manifold-to-solenoid EVAP hose to the intake manifold and to the EVAP solenoid.

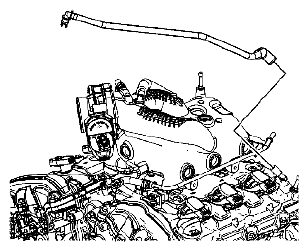

   Fig 8: Identifying Dirty Air Positive Crankcase Ventilation Hose

   Courtesy of SUZUKI OF AMERICA CORP.
8. Install and connect the dirty air positive crankcase ventilation (PCV) hose to the intake manifold and to the right camshaft cover fitting.
   Fig 9: Identifying Engine Coolant Air Bleed Pipe

   Courtesy of SUZUKI OF AMERICA CORP.
9. Install the engine coolant air bleed pipe.

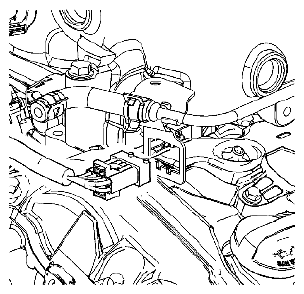

   Fig 10: Identifying Fuel Injector Harness Connector

   Courtesy of SUZUKI OF AMERICA CORP.
10. Install the fuel injector harness connector to the engine coolant air bleed pipe bracket.

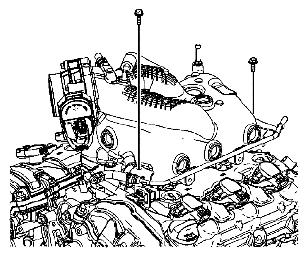

    Fig 11: Identifying Engine Coolant Air Bleed Pipe Bracket Bolts

    Courtesy of SUZUKI OF AMERICA CORP.
11. Install the engine coolant air bleed pipe bracket bolts to the upper intake manifold.

    Tightening torque

    Tighten the engine coolant air bleed pipe bracket bolts to 10 N.m (89 lb in)  .

    Fig 12: Identifying Fresh Air PCV Hose

    Courtesy of SUZUKI OF AMERICA CORP.
12. Install and connect the fresh air PCV hose to the left camshaft cover fitting.

    Reference: ENGINE FLYWHEEL INSTALLATION
