Engine Block Disassemble

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

Reference: CRANKSHAFT AND BEARING REMOVAL

Fig 1: Identifying Block Heater Cartridge
G05465507Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the block heater cartridge.
    Fig 2: Identifying Right Knock Sensor And Bolt
    G05465508Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the right knock sensor bolt.
  3. Remove the right knock sensor.
    Fig 3: Identifying Crankshaft Position Sensor And Bolt
    G05465509Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the crankshaft position sensor bolt.
  5. Remove the crankshaft position sensor.
    Fig 4: Identifying Crankshaft Position Sensor O-Ring
    G05465510Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove and discard the crankshaft position sensor O-ring, if damaged.
    Fig 5: Identifying Left Knock Sensor And Bolt
    G05465511Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove the left knock sensor bolt.
  8. Remove the left knock sensor.
    Fig 6: Identifying Oil Jet And Bolts
    G05465512Courtesy of SUZUKI OF AMERICA CORP.
  9. Remove the oil jet bolts.
  10. Remove the oil jets.
    Fig 7: Identifying Right Front Oil Pan Rail Oil Gallery Expansion Plug
    G05465513Courtesy of SUZUKI OF AMERICA CORP.
  11. Remove the right front oil pan rail oil gallery expansion plug.
    Fig 8: Identifying Cylinder Block-To-Oil Pan Alignment Dowels
    G05465514Courtesy of SUZUKI OF AMERICA CORP.
  12. Remove the cylinder block-to-oil pan alignment dowels.
    Fig 9: Identifying M14 Right Side Oil Gallery Threaded Plug
    G05465515Courtesy of SUZUKI OF AMERICA CORP.
  13. Remove the M14 right side oil gallery threaded plug.

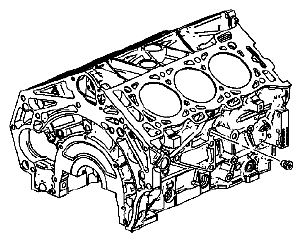

    Fig 10: Identifying M14 Right Side Coolant Drain Threaded Plug
    G05465516Courtesy of SUZUKI OF AMERICA CORP.
  14. Remove the M14 right side coolant drain threaded plug.
    Fig 11: Identifying M14 Rear Oil Gallery Threaded Plug
    G05465517Courtesy of SUZUKI OF AMERICA CORP.
  15. Remove the M14 rear oil gallery threaded plug.

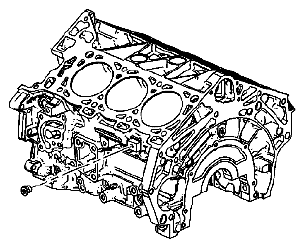

    Fig 12: Identifying M14 Left Side Coolant Drain Threaded Plug
    G05465518Courtesy of SUZUKI OF AMERICA CORP.
  16. Remove the M14 left side coolant drain threaded plug.
    Fig 13: Identifying M20 Left Side Oil Gallery Threaded Plug
    G05465519Courtesy of SUZUKI OF AMERICA CORP.
  17. Remove the M20 left side oil gallery threaded plug.
    Fig 14: Identifying Coolant Expansion Plugs
    G05465520Courtesy of SUZUKI OF AMERICA CORP.
  18. Remove the coolant expansion plugs.
    Fig 15: Identifying Cylinder Block-To-Transmission Alignment Dowels
    G05465521Courtesy of SUZUKI OF AMERICA CORP.
  19. Remove the cylinder block-to-transmission alignment dowels.
    Fig 16: Identifying Front Oil Gallery Expansion Plug
    G05465522Courtesy of SUZUKI OF AMERICA CORP.
  20. Remove the front oil gallery expansion plug.
    Fig 17: Identifying Cylinder Block-To-Cylinder Head Alignment Dowels
    G05465523Courtesy of SUZUKI OF AMERICA CORP.
  21. Remove the cylinder block-to-cylinder head alignment dowels.

Reference: ENGINE BLOCK CLEANING AND INSPECTION
