Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Drive Belt Idler Pulley

Courtesy of SUZUKI OF AMERICA CORP.

Install the drive belt idler pulley.
Position generator in place then install the generator bolts.

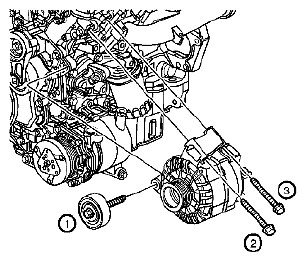

Fig 2: Identifying Generator And Idler Pulley Bolt Tightening Sequence
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Refer to FASTENER NOTICE .
Tighten the generator and idler pulley bolt in sequence shown.
Tightening torque

Tighten the generator and drive belt idler pulley bolts to 50 N.m (37 lb ft) .

Fig 3: Identifying Generator Battery Cable
Courtesy of SUZUKI OF AMERICA CORP.
Install the battery cable.
Install the battery cable boot.

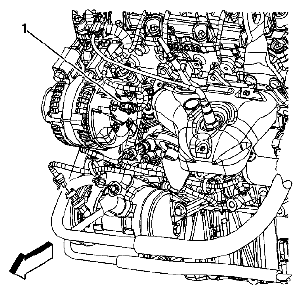

Fig 4: Identifying Generator Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the generator electrical connector (1).
Install the drive belt. Refer to DRIVE BELT REPLACEMENT .
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
