Removal Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

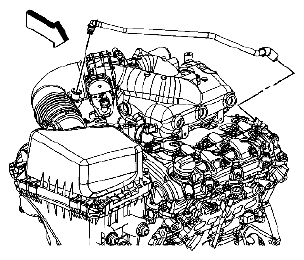

Fig 1: Identifying Positive Crankcase Ventilation Tube

Courtesy of SUZUKI OF AMERICA CORP.

Remove the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT .
Remove the positive crankcase ventilation (PCV) tube from the air cleaner outlet duct.

Fig 2: Identifying Air Cleaner Outlet Duct Clamps, Mass Air Flow And Intake Air Temperature Sensor
Courtesy of SUZUKI OF AMERICA CORP.
Loosen the air cleaner outlet duct clamps at the throttle body and the mass air flow (MAF)/intake air temperature (IAT) sensor.
Remove the air cleaner intake duct from the MAF/IAT sensor and the throttle body.
