Installation Procedure

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Sunroof Switch With Fasteners
G05471417Courtesy of SUZUKI OF AMERICA CORP.
  1. Install sunroof switch with fasteners.

    Tightening torque

    Tighten sunroof switch to 2.5 N.m (22 lb in)

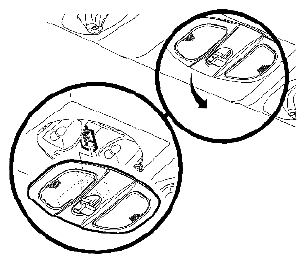

    Fig 2: Identifying Sunroof Switch Harness To Sunroof Switch
    G05471418Courtesy of SUZUKI OF AMERICA CORP.
  2. Connect sunroof switch harness to sunroof switch.
  3. Position front reading lamp cover into rear attaching hooks.
  4. Rotate front reading lamp cover into lamp assembly forward, then snap cover into place.
  5. Function sunroof switch to ensure proper operation.
