Steering Wheel Secondary/Configurable Control Schematics

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

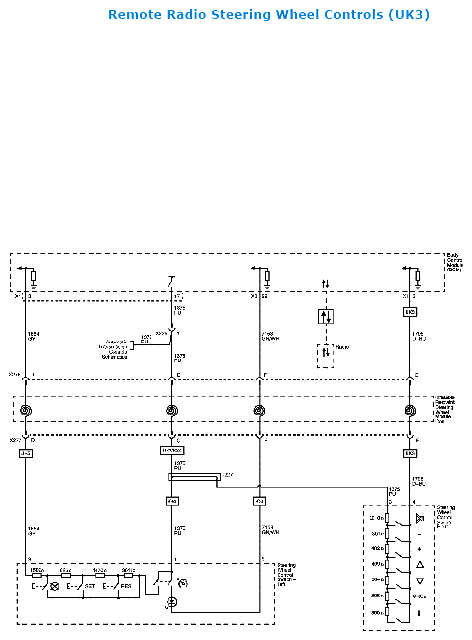

Fig 1: Steering Wheel Secondary/Configurable Control Schematics - Diagram (Remote Radio Steering Wheel Controls-UK3)
G05471716Courtesy of SUZUKI OF AMERICA CORP.
