Liftgate Outside Handle Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

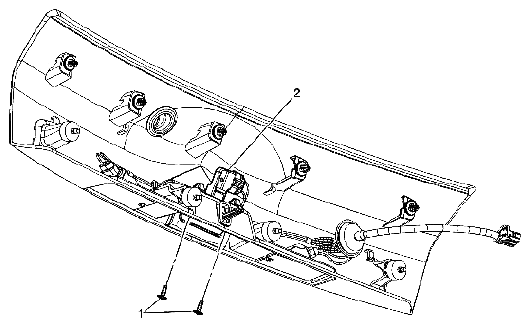

Fig 1: Identifying Liftgate Handle Screws And Liftgate Handle

Courtesy of SUZUKI OF AMERICA CORP.

LIFTGATE OUTSIDE HANDLE COMPONENT REFERENCE

Callout	Component Name
Preliminary Procedure Remove the liftgate center applique. Refer to LIFTGATE CENTER APPLIQUE REPLACEMENT .
1	Liftgate Handle Screws (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 3 N.m (27 lb in)
2	Liftgate Handle Tip: Disconnect the electrical connector.
