Liftgate Hinge Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

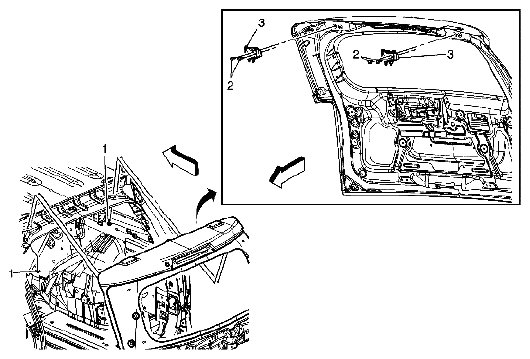

Fig 1: Identifying Liftgate Hinge Nuts And Liftgate Hinge

Courtesy of SUZUKI OF AMERICA CORP.

LIFTGATE HINGE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the liftgate assembly if replacing both hinges. Refer to LIFTGATE REPLACEMENT . Prop and secure the liftgate and remove the bolts from the appropriate hinge if only replacing one hinge. Refer to LIFTGATE REPLACEMENT . Lower the rear of the headliner. Refer to HEADLINING TRIM PANEL REPLACEMENT .
1	Liftgate Hinge Nuts (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque 25 N.m (18 lb ft)
2	Liftgate Hinge
