Removal Procedure

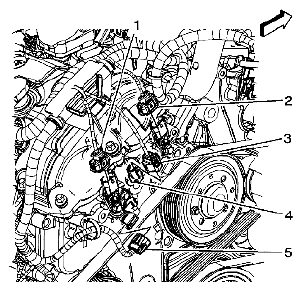

Fig 1: Identifying Engine Wiring Harness Electrical Connector
G05469881Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT .
  2. Disconnect the engine wiring harness electrical connector (2) from the bank 1 intake camshaft position (CMP) sensor.
    Fig 2: Identifying Intake Camshaft Position Sensor Bolt
    G05469882Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the CMP sensor bolt.
  4. Remove the CMP sensor.
