Installation Procedure

Fig 1: Identifying Intake Camshaft Position Sensor Bolt

Courtesy of SUZUKI OF AMERICA CORP.

Install the CMP sensor.
CAUTION: Refer to FASTENER NOTICE .
Install the CMP sensor bolt.
Tightening torque

Tighten the bolt to 10 N.m (89 lb in).

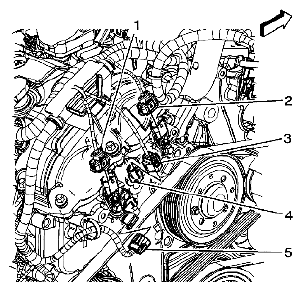

Fig 2: Identifying Engine Wiring Harness Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the engine wiring harness electrical connector (2) to the bank 1 intake CMP sensor.
Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT .
