Removal Procedure

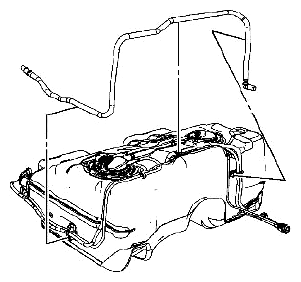

Fig 1: Identifying Fuel Tank Fill Vent Line And Fuel Tank Clips
G05465750Courtesy of SUZUKI OF AMERICA CORP.
  1. Remove the fuel tank. Refer to FUEL TANK REPLACEMENT (FWD)  or FUEL TANK REPLACEMENT (AWD) .
  2. Remove the fuel tank fill vent line from the retaining feature built into the tank.
  3. Remove the fuel tank fill vent line from the fuel tank clips.
