Installation Procedure

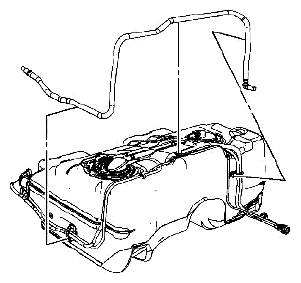

Fig 1: Identifying Fuel Tank Fill Vent Line And Fuel Tank Clips
G05465751Courtesy of SUZUKI OF AMERICA CORP.
  1. Install the fuel tank fill vent line to the fuel tank clips.
  2. Install the fuel tank fill vent line to the retaining feature built into the tank.
  3. Install the fuel tank. Refer to FUEL TANK REPLACEMENT (FWD)  or FUEL TANK REPLACEMENT (AWD) .
