Installation Procedure

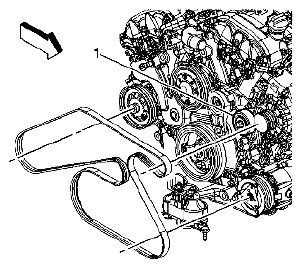

Fig 1: Identifying Drive Belt And Belt Idler Pulley
G05465170Courtesy of SUZUKI OF AMERICA CORP.
  1. Install the drive belt to the crankshaft pulley, the tensioner and the generator.
  2. Rotate the drive belt tensioner clockwise.
  3. Install the drive belt to the idler pulley (1).
    NOTE: Ensure the drive belt is properly aligned and seated into the grooves of the accessory drive pulleys.
  4. Slowly release the drive belt tensioner.
  5. Raise the vehicle.
  6. Install the right side engine mount bracket. Refer to ENGINE MOUNT BRACKET REPLACEMENT - RIGHT SIDE .
  7. Install the engine splash shield. Refer to ENGINE SPLASH SHIELD REPLACEMENT - RIGHT SIDE .
  8. Lower the vehicle.
  9. Install the engine mount strut bracket. Refer to ENGINE MOUNT STRUT BRACKET REPLACEMENT - RIGHT SIDE .
  10. Remove the engine support fixture. Refer to ENGINE SUPPORT FIXTURE .
  11. Install the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT .
