Cylinder Head Removal - Left Side

Reference: VALVE LIFTER REMOVAL - LEFT SIDE

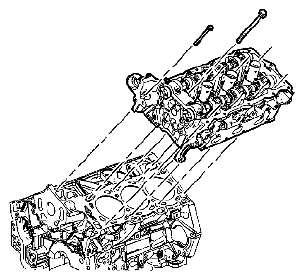

Fig 1: Identifying Left Cylinder Head Bolts

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the two front M8 left cylinder head bolts.
2. Remove the left cylinder head bolts.
3. Remove the left cylinder head.
   Fig 2: Identifying Left Cylinder Head Gasket

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove and discard the left cylinder head gasket.

Reference: CYLINDER HEAD DISASSEMBLE
