Installation Procedure

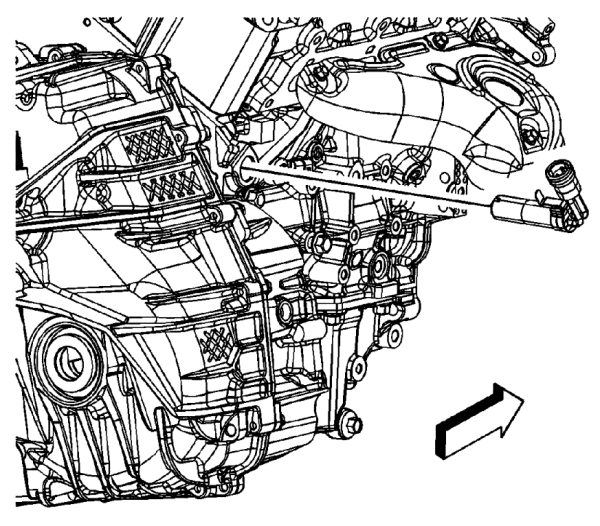

Fig 1: Identifying Coolant Heater
G00491081Courtesy of SUZUKI OF AMERICA CORP.
  1. Install the coolant heater.
  2. Connect the coolant heater cord to the coolant heater.
  3. Lower the vehicle.
