Yaw Rate and Lateral Acceleration Sensor

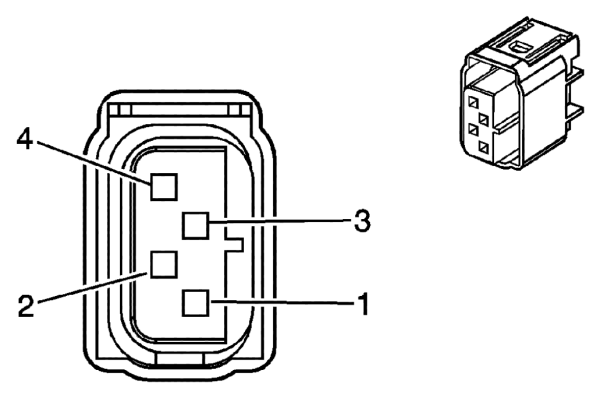

Fig 1: Identifying Yaw Rate And Lateral Acceleration Sensor Connector End Views

Courtesy of SUZUKI OF AMERICA CORP.

Connector Part Information

OEM: 1-967640-1

Service: -

Description: 4-Way F MQS Socket Housing Sealed (BK)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit

Core/Insulation Crimp: See Terminal Repair Kit

Release Tool/Test Probe: See Terminal Repair Kit

Yaw Rate and Lateral Acceleration Sensor

CONNECTOR PINOUTS REFERENCE

Pin	Wire	Circuit	Function
1	0.5 OG/BK	6045	Low Reference
2	0.5 WH/BK	6436	CAN Bus Low Terminated Serial Data
3	0.5 BN/WH	6437	CAN Bus High Terminated Serial Data
4	0.5 GY	6044	12-Volt Reference
