Rear Wheel Drive Module Clutch (MH6)

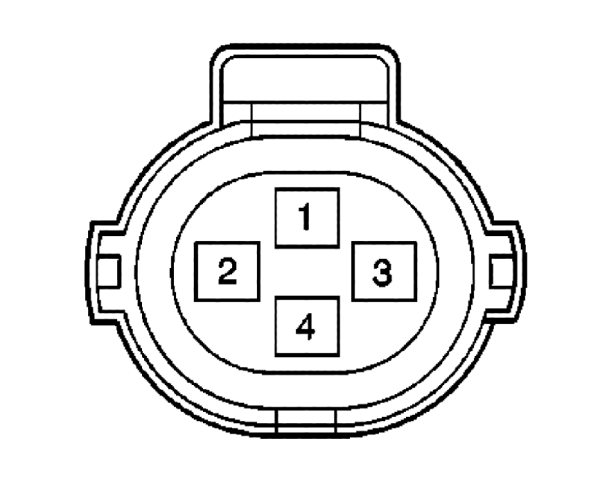

Fig 1: Identifying Rear Wheel Drive Module Clutch (MH6) Connector End Views
G00494019Courtesy of SUZUKI OF AMERICA CORP.

Connector Part Information

OEM: 90980-10942

Service: -

Description: 4-Way F

CONNECTOR PINOUTS REFERENCE

Pin Wire Circuit Function
1 0.5 YE 9996 Low Reference
2 0.5 YE 9997 AWD Coil Supply Voltage
3 0.5 YE 9999 AWD Temperature Sensor Signal
4 0.5 YE 9998 Low Reference
