Knock Sensor (KS) 2
Connector Part Information
OEM: 15374222
Service: -
Description: 2-Way F GT 150 Sealed (NA)
Terminal Part Information
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Knock Sensor (KS) 2

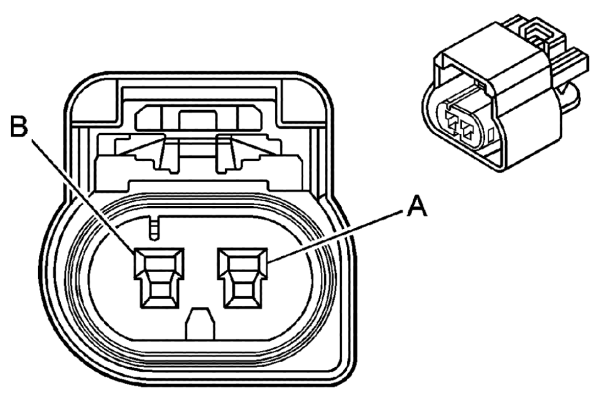

CONNECTOR PINOUTS REFERENCE
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.5 L-BU | 1876 | Knock Sensor 2 Signal |
| B | 0.5 GY | 2303 | Knock Sensor 2 Signal |
