Hazard Switch

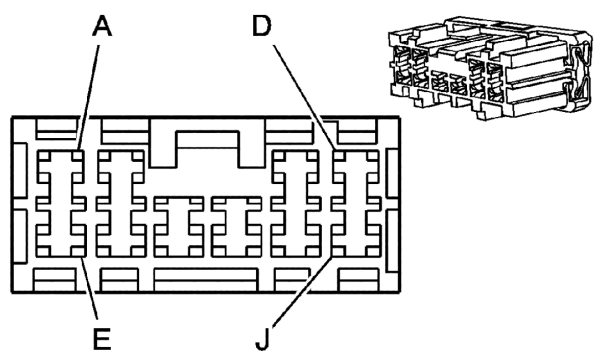

Fig 1: Identifying Hazard Switch Connector End Views

Courtesy of SUZUKI OF AMERICA CORP.

Connector Part Information

OEM: 7183-7201-80

Service: -

Description: 8-Way F (BN)

Terminal Part Information

Pins: B, C, J

Terminal/Tray: 8240-4412/22

Core/Insulation Crimp: E/C

Release Tool/Test Probe: 15315247/J-35616-2A (GY)

Pins: I

Terminal/Tray: 8240-4422/6

Core/Insulation Crimp: E/A

Release Tool/Test Probe: 15315247/J-35616-2A (GY)
