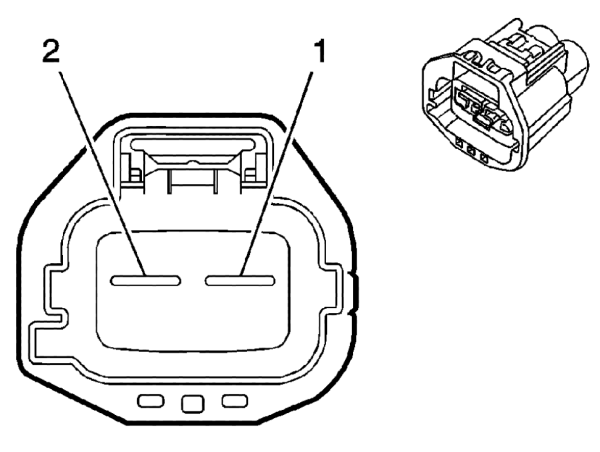

Engine Cooling Fan - Left
Connector Part Information
OEM: 7283-5596-10
Service: 88953307
Description: 2-Way F YESC/USCAR Class III (D-GY)
Terminal Part Information
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
CONNECTOR PINOUTS REFERENCE
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 3.0 GY | 532 | Cooling Fan Motor Control |
| 2 | 3.0 WH | 504 | Low Reference |
