Cargo Lamp
Courtesy of SUZUKI OF AMERICA CORP.

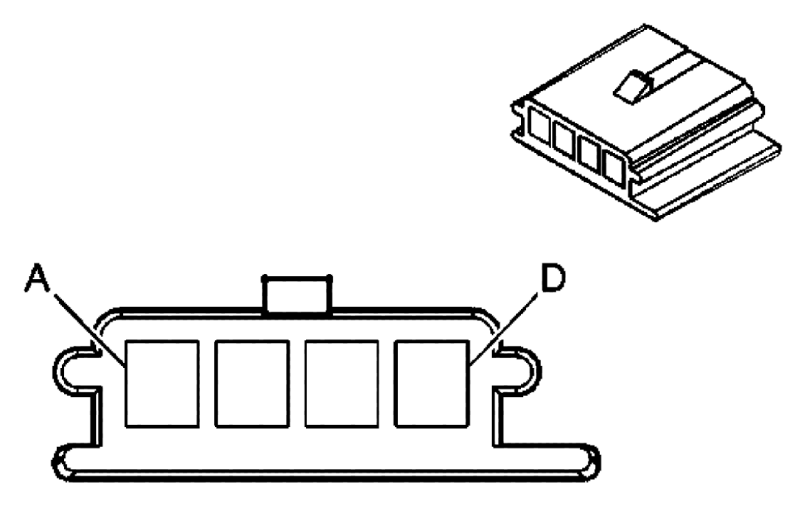

Connector Part Information
OEM: 12045813
Service: 12101889
Description: 4-Way F Metri-pack 150 Series (CM)
CONNECTOR PINOUTS REFERENCE
| Pin |
Wire |
Circuit |
Function |
| A |
- |
- |
Not Used |
| B |
0.8 GY |
157 |
Courtesy Lamp Control |
| C |
- |
- |
Not Used |
| D |
0.8 BK |
850 |
Ground |
