Yaw Rate And Lateral Accelerator Sensor, And Steering Angle Sensor

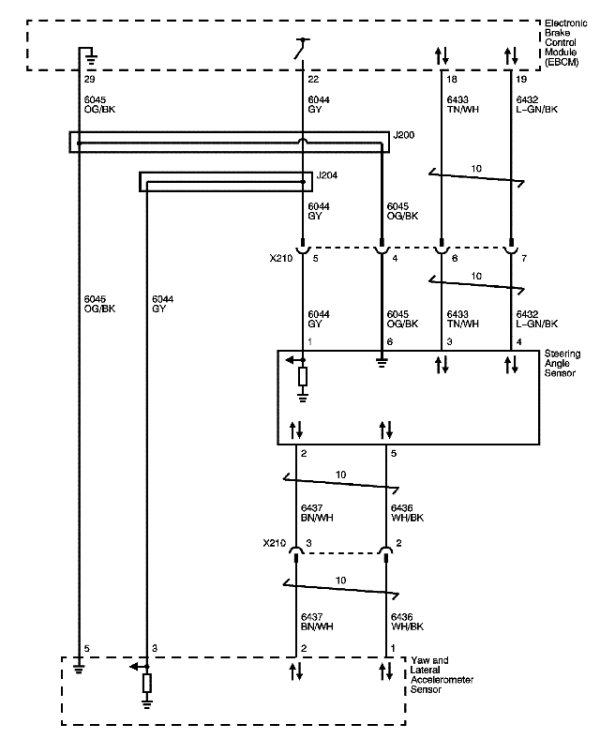

Fig 1: Yaw Rate And Lateral Accelerator Sensor, And Steering Angle Sensor - Schematic And Routing Diagram
G00491106Courtesy of SUZUKI OF AMERICA CORP.
