Wheel Speed Sensor

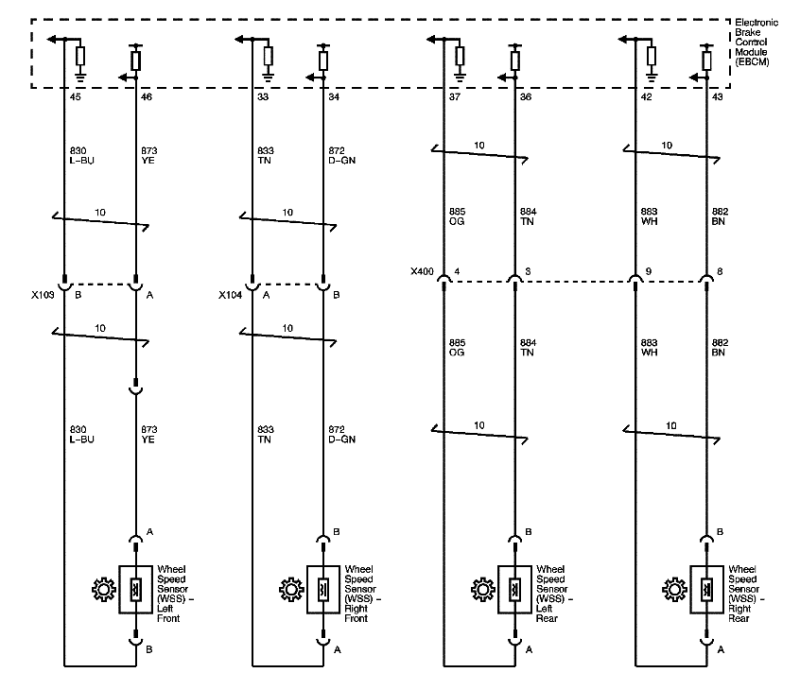

Fig 1: Wheel Speed Sensor - Schematic And Routing Diagram
Courtesy of SUZUKI OF AMERICA CORP.
