Serial Data, Traction Switch, And Instrument Panel

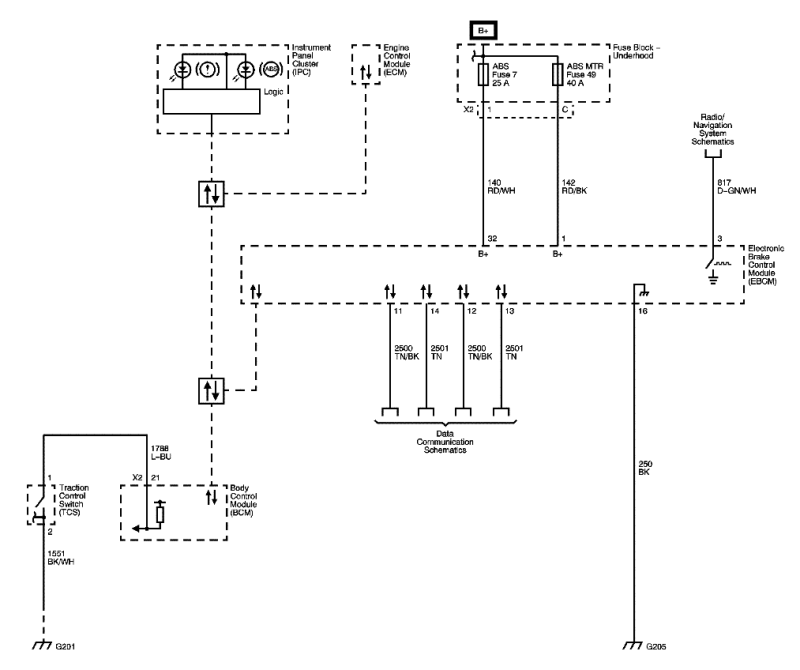

Fig 1: Serial Data, Traction Switch, And Instrument Panel - Schematic And Routing Diagram
G00491104Courtesy of SUZUKI OF AMERICA CORP.
