Brake Pedal Position Sensor Replacement

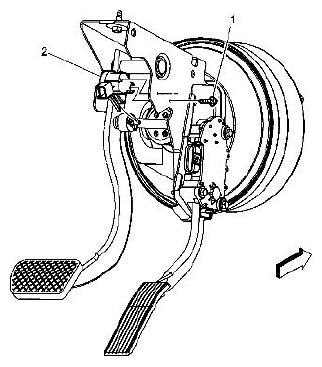

Fig 1: Identifying Brake Pedal Position Sensor Bolts And Electrical Connector

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedures Remove the left side instrument panel sound insulator. Refer to INSTRUMENT PANEL INSULATOR PANEL REPLACEMENT - LEFT SIDE . Remove the left side knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
1	Brake Pedal Position Sensor Bolt Calibrate the position sensor. Refer to BRAKE PEDAL POSITION SENSOR CALIBRATION . Do not reuse the position sensor or bolt. Always use a new sensor and bolt.
2	Brake Pedal Position Sensor Assembly CAUTION: Refer to FASTENER NOTICE .
2	Tip: Disconnect the electrical connector. Tightening torque 2.5 N.m (22 lb in)
