Wiper and Washer Systems: Locations

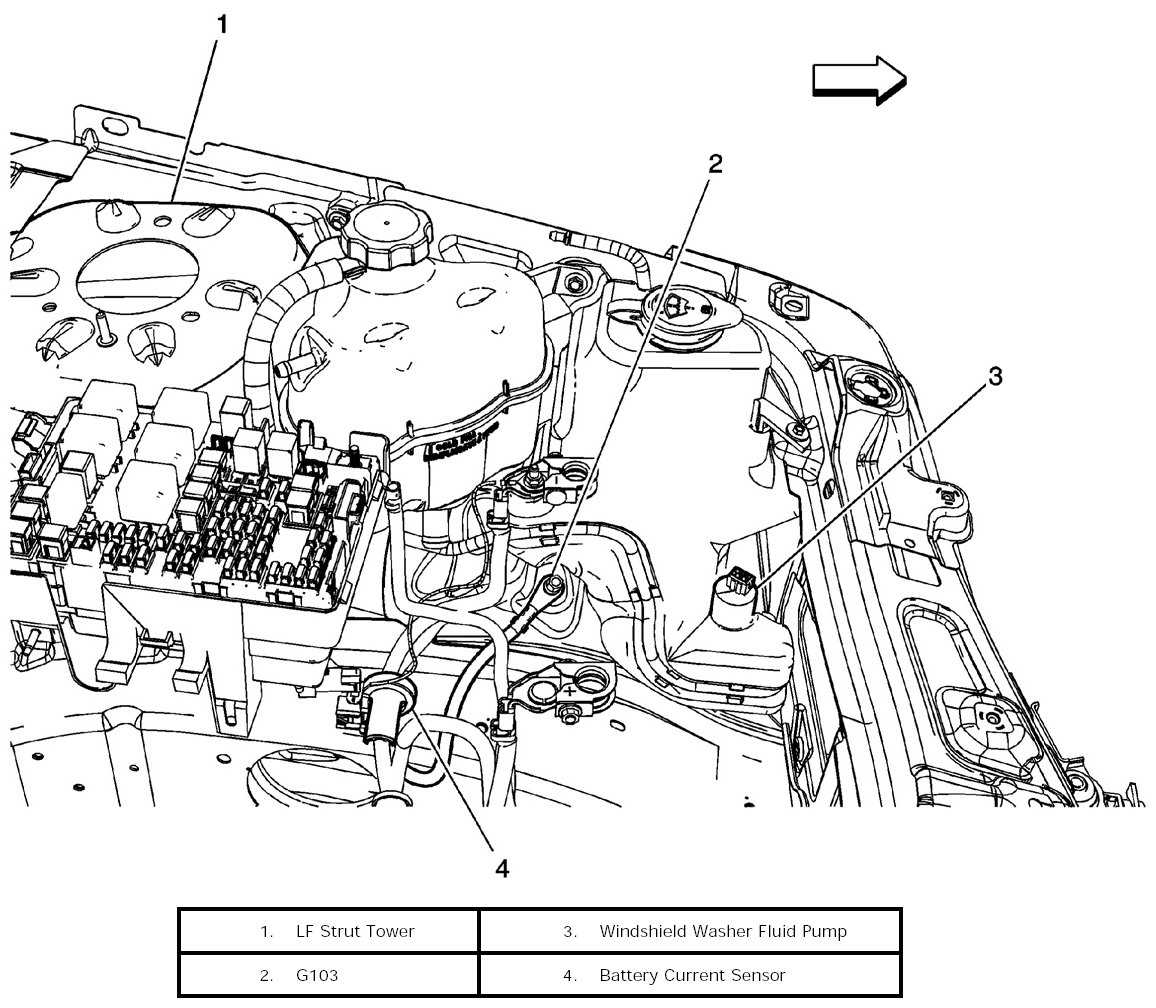

LF of the Engine Compartment:

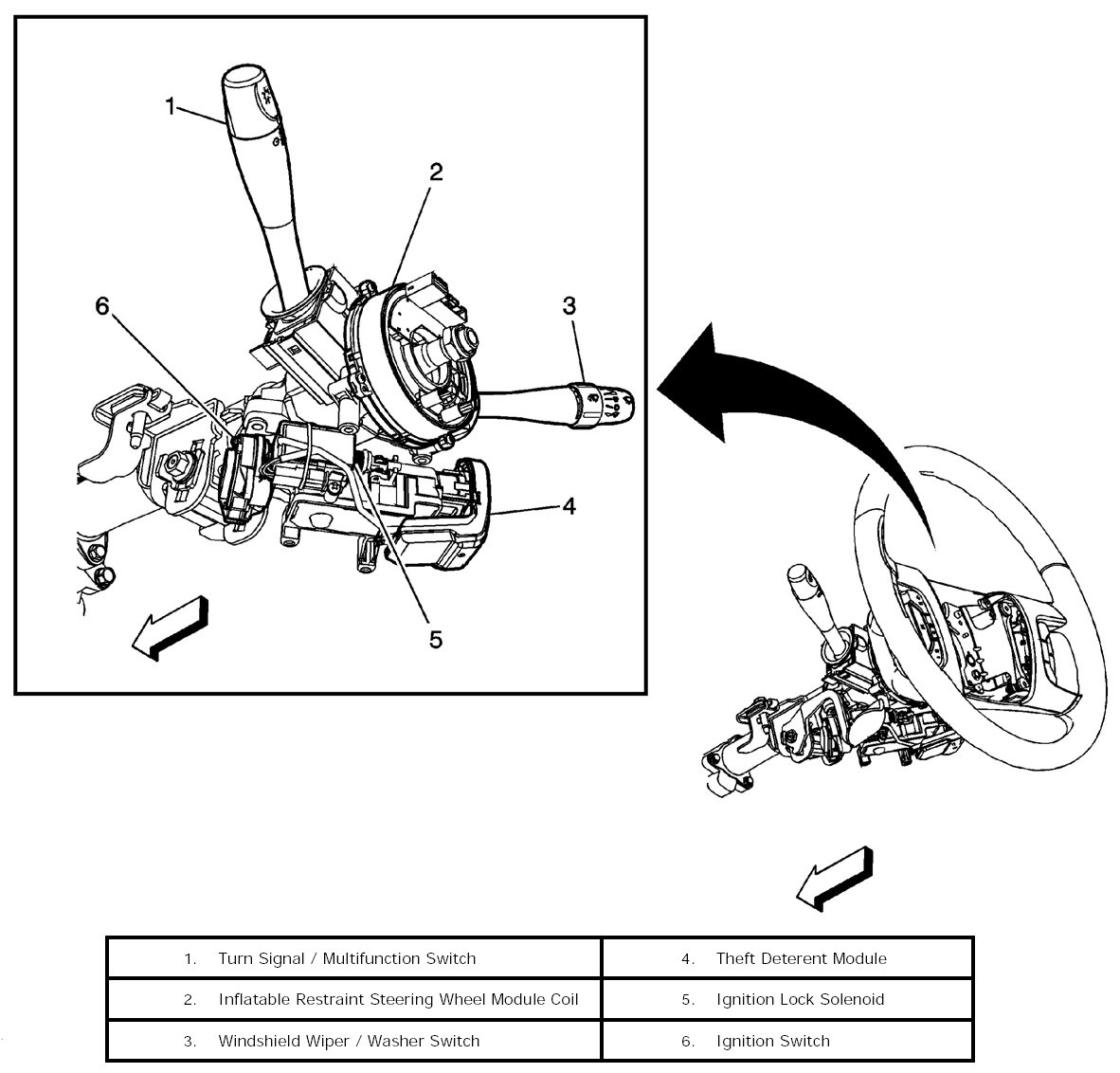

Steering Column:

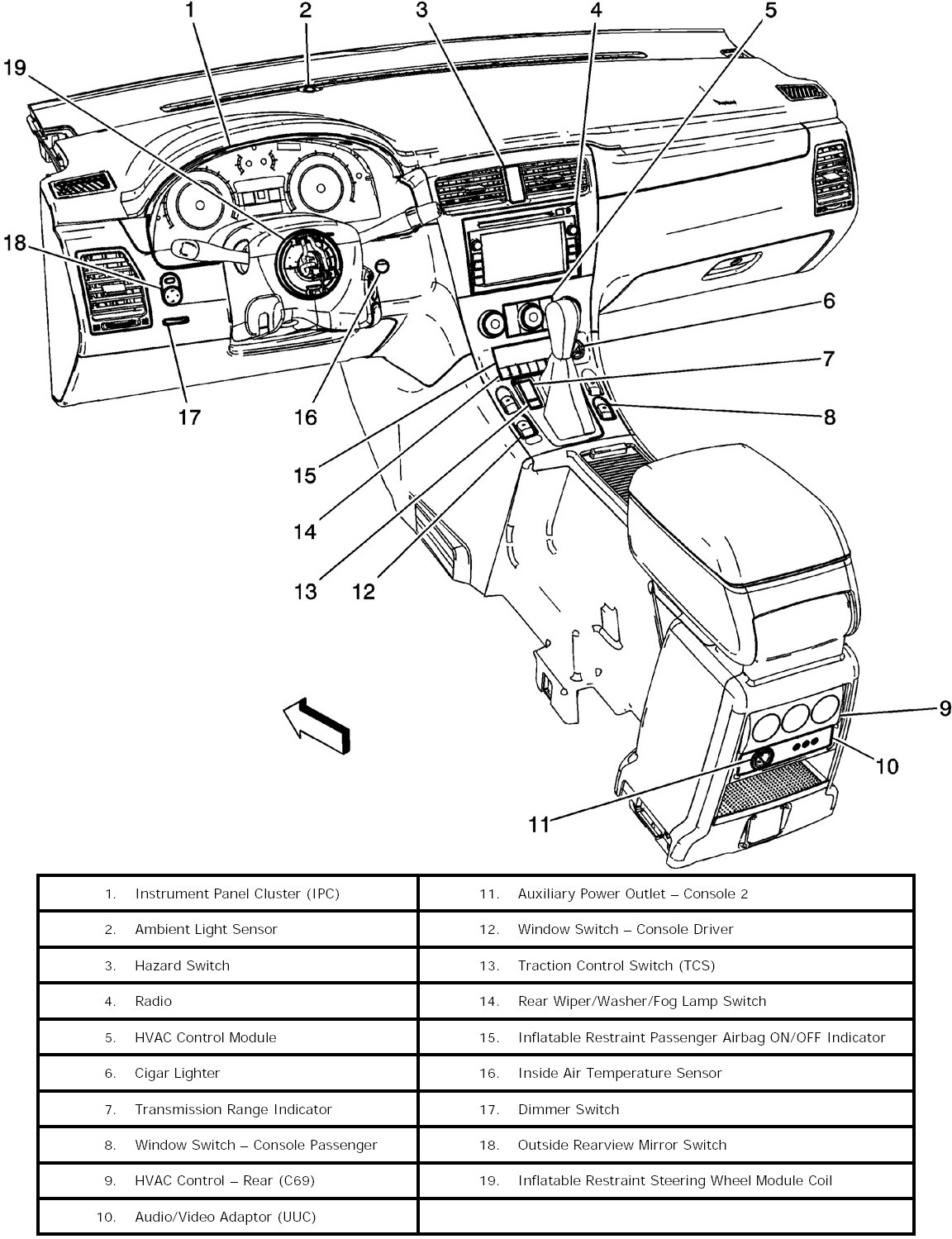

I/P and Console Components:
