Transmission Cooler Line Seals Installation

Transmission Cooler Line Seals Installation

Special Tool
J4239-1A Cooler Line Seal Installer

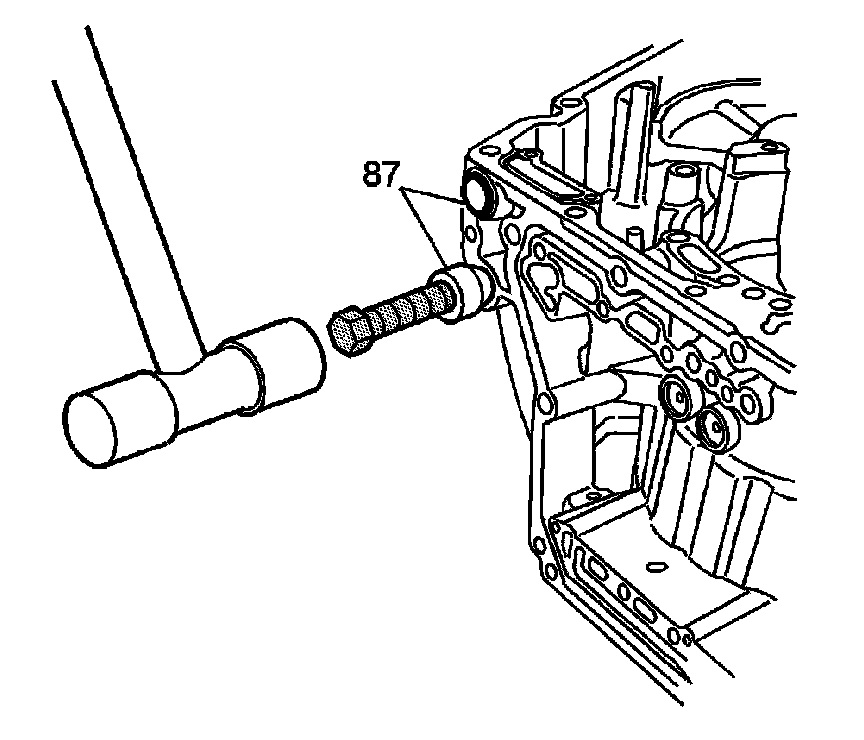

Using J 41239-1A install 2 NEW fluid cooler pipe fitting seals (87) making sure that the seal lip is flush with the transmission case assembly.
