Output Gear Assembly Installation

Output Gear Assembly Installation





1. Rotate the transmission case so that the I. D. tag is facing up.

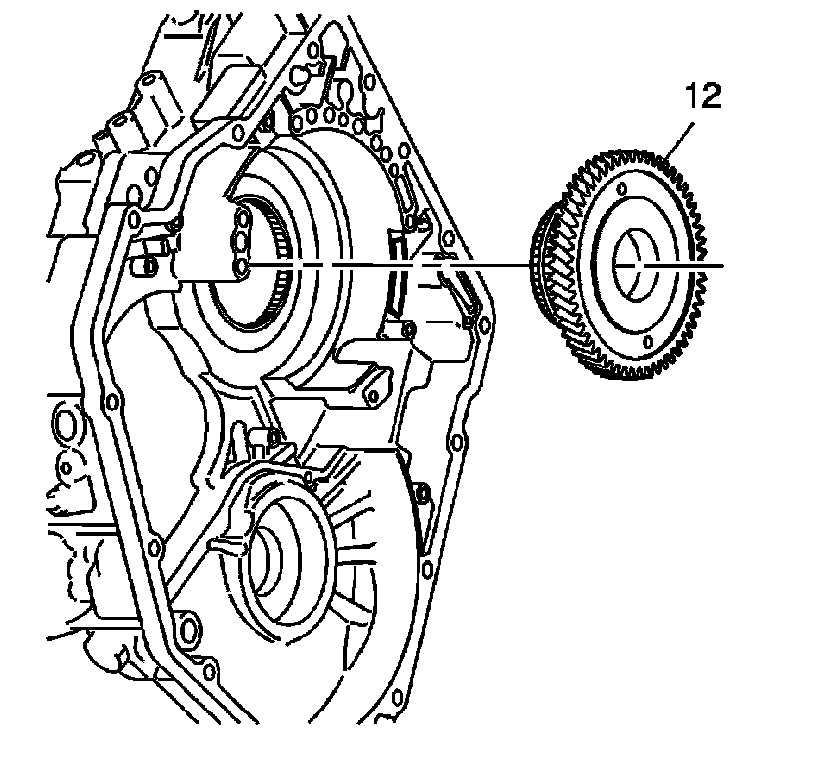

2. Install the output gear assembly (12) into the transmission case assembly.

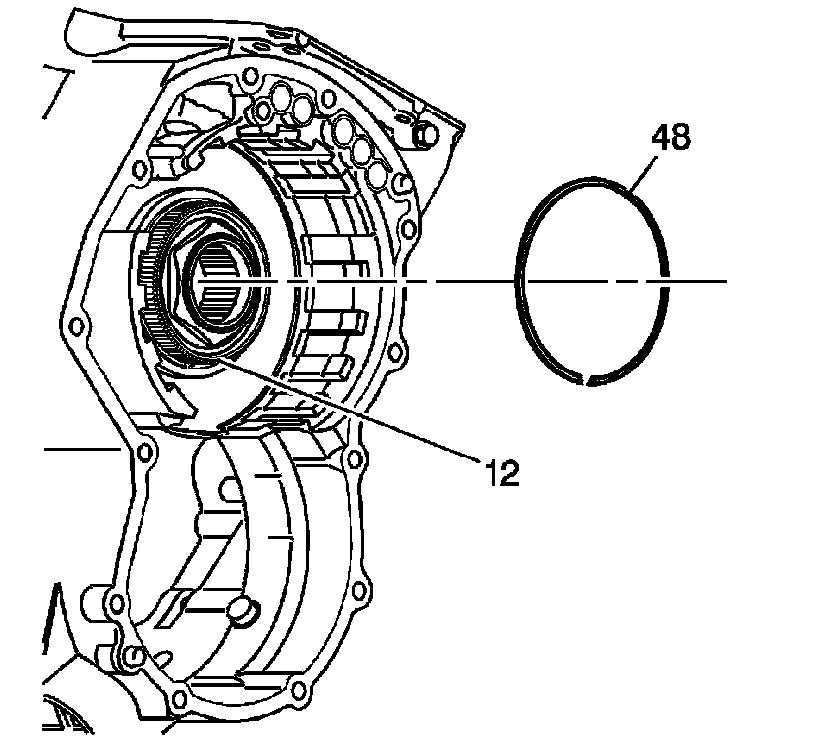

3. Install the output gear retaining ring (48) into the output gear assembly (12) groove.
