Holding Fixture Removal

Holding Fixture Removal

Special Tool
DT-48355 Holding Fixture

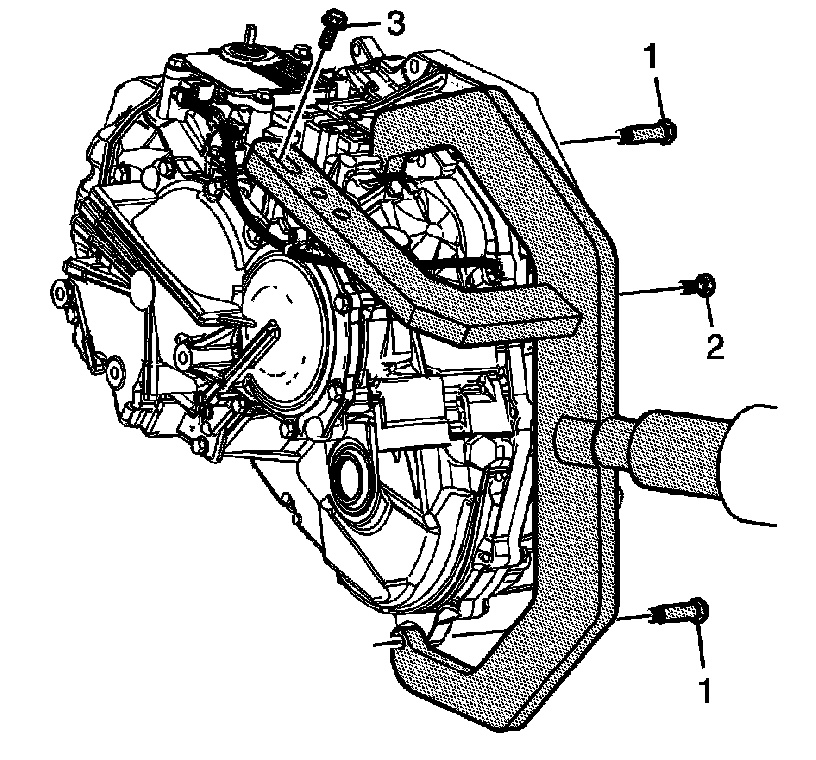

1. Loosen the bolt (2) holding the bracket to the fixture body.
2. Remove the bracket bolt (3) from the transaxle.
3. Remove the 2 bolts (1) holding the fixture to the transaxle.
4. Remove the DT-48355 from the transaxle.

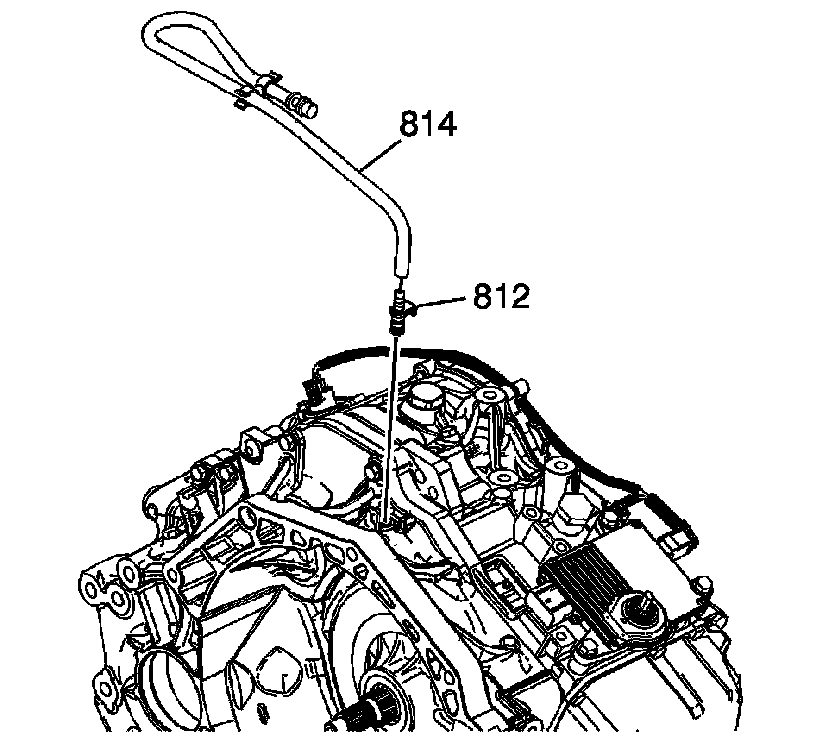

5. Install the transmission vent pipe (812).
6. Install the vent hose (814).
