Oil Pan, Engine

Torque Specifications

Oil Pan

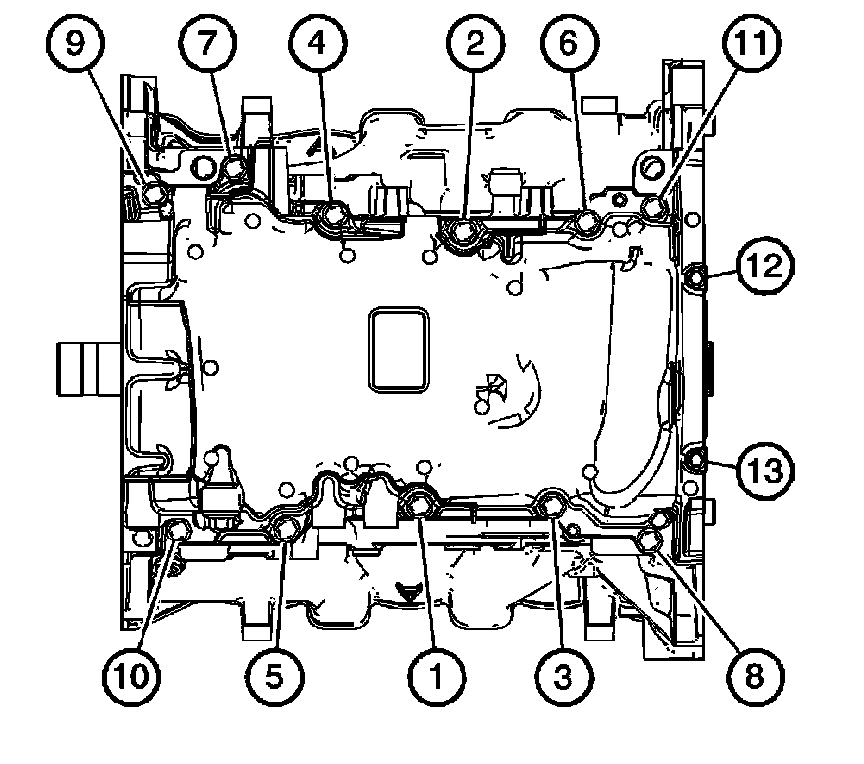

8 mm bolts (1 - 11) 23 Nm (17 ft. lbs.)
6 mm bolts (12, 13) 10 Nm (89 ft. lbs.)
