Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement

Special Tool
J 41712 Oil Pressure Switch Socket

Removal Procedure





1. Turn the ignition OF
2. Disconnect the oil pressure sensor electrical connector.

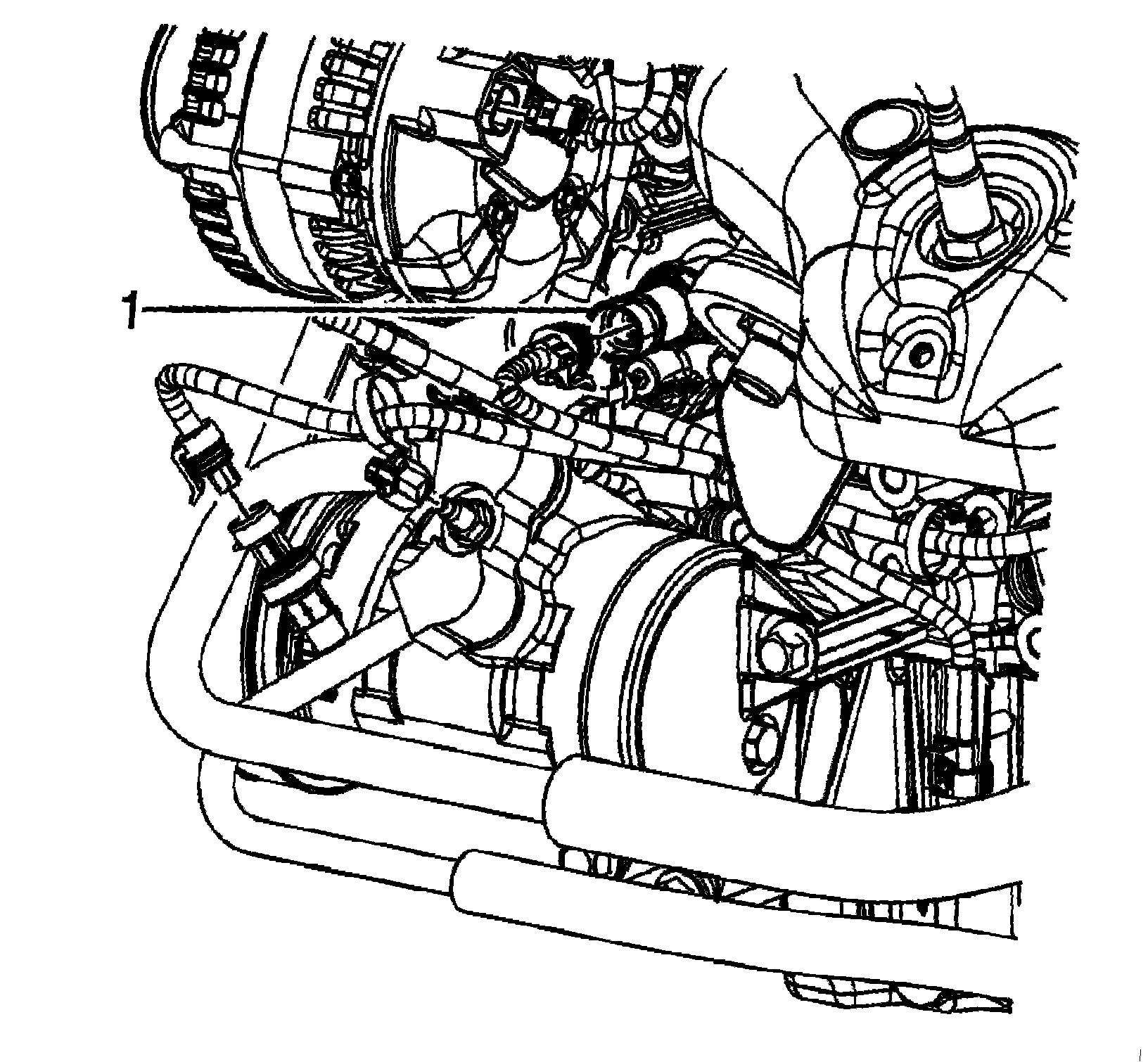

3. Remove the oil pressure sensor (1).

Installation Procedure





CAUTION:
Refer to [Fastener Notice].

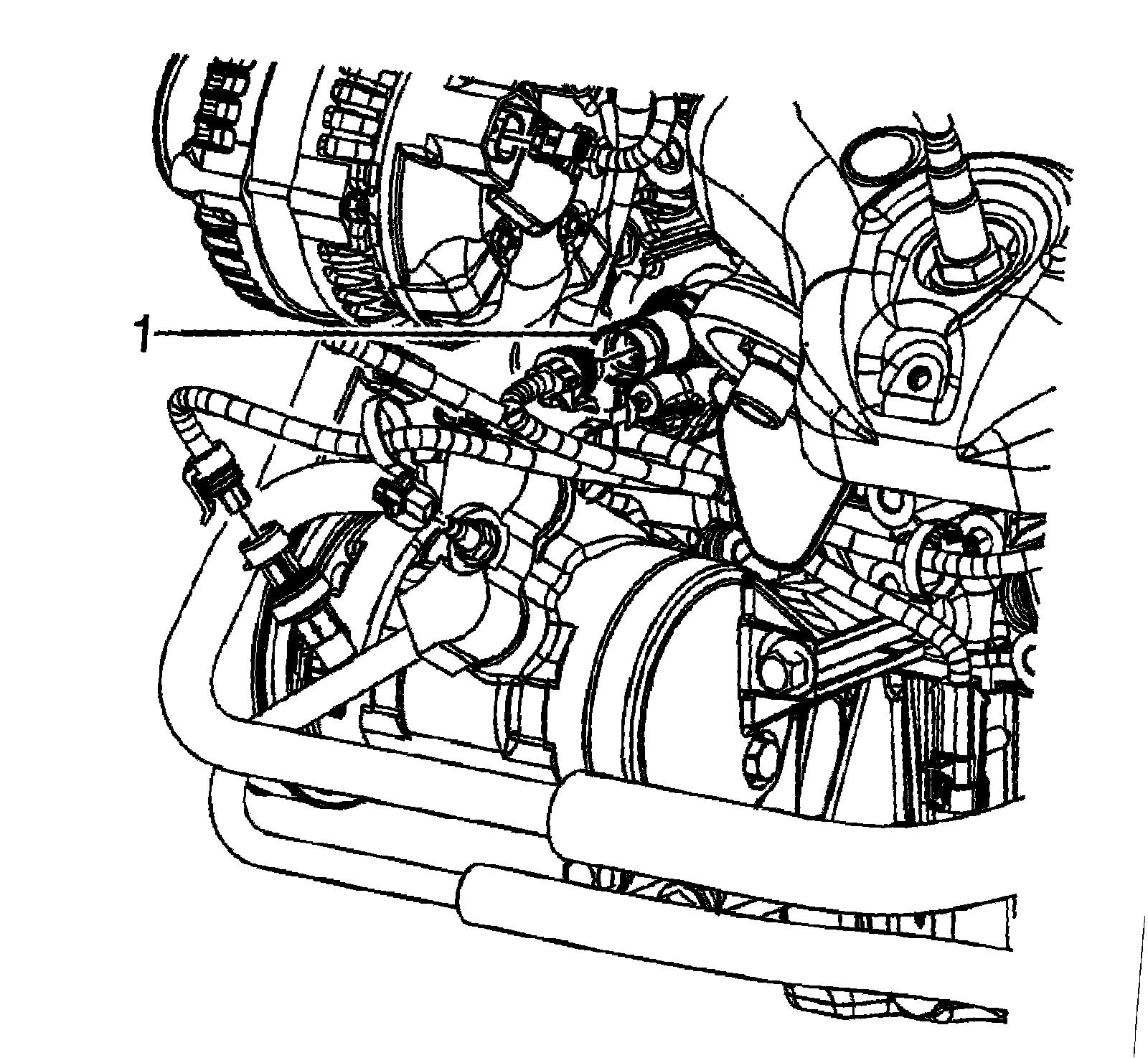

1. Install the oil pressure sensor (1).
Tightening torque
Tighten the oil pressure sensor to 20 Nm (15 lb ft).
2. Connect the oil pressure sensor electrical connector.
