Fuse Block - Underhood

Fuse Block - Underhood Label

Fuse Block - Underhood Label:





Fuse Block - Underhood Label Usage (Part 1):

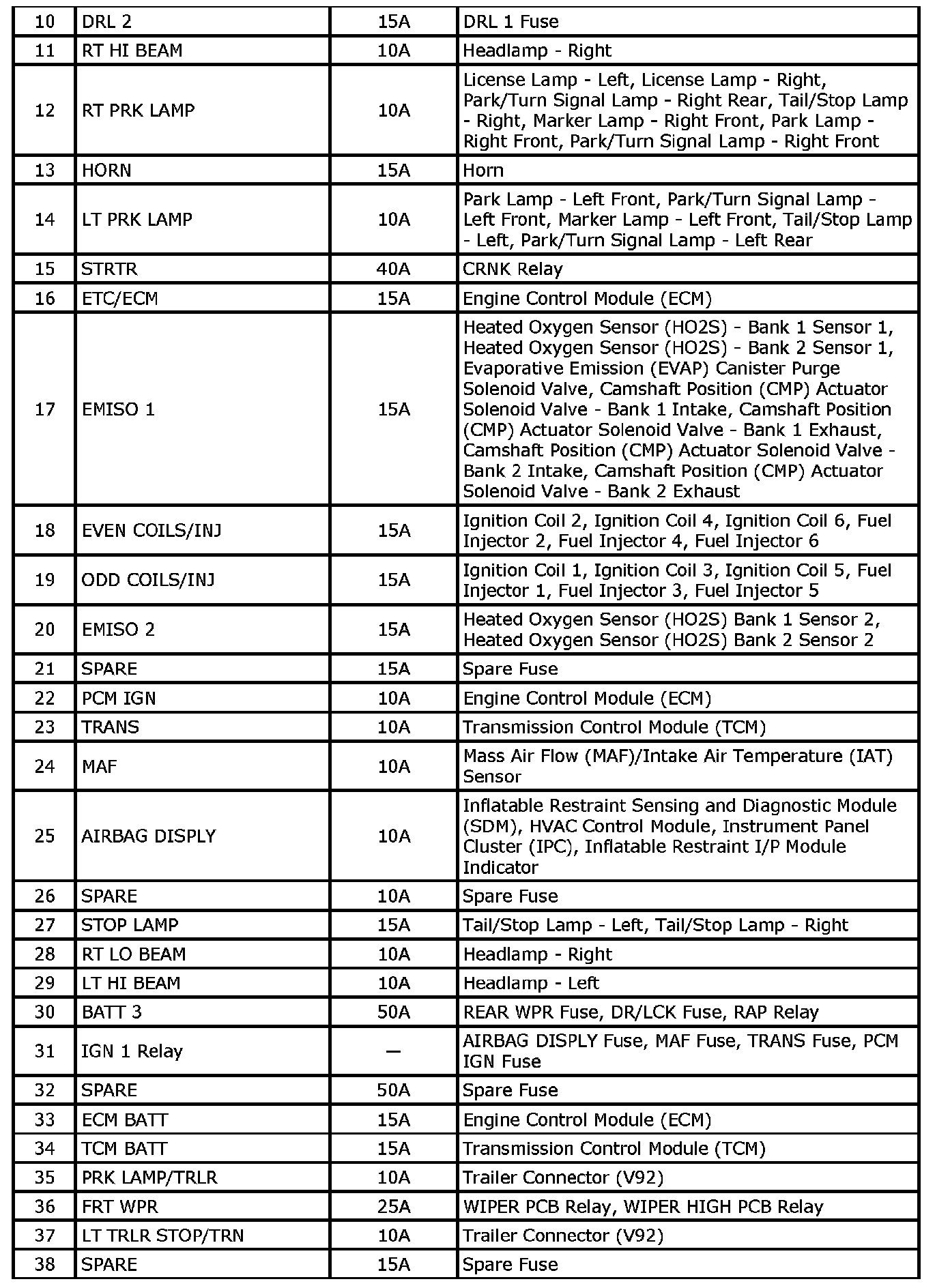

Fuse Block - Underhood Label Usage (Part 2):

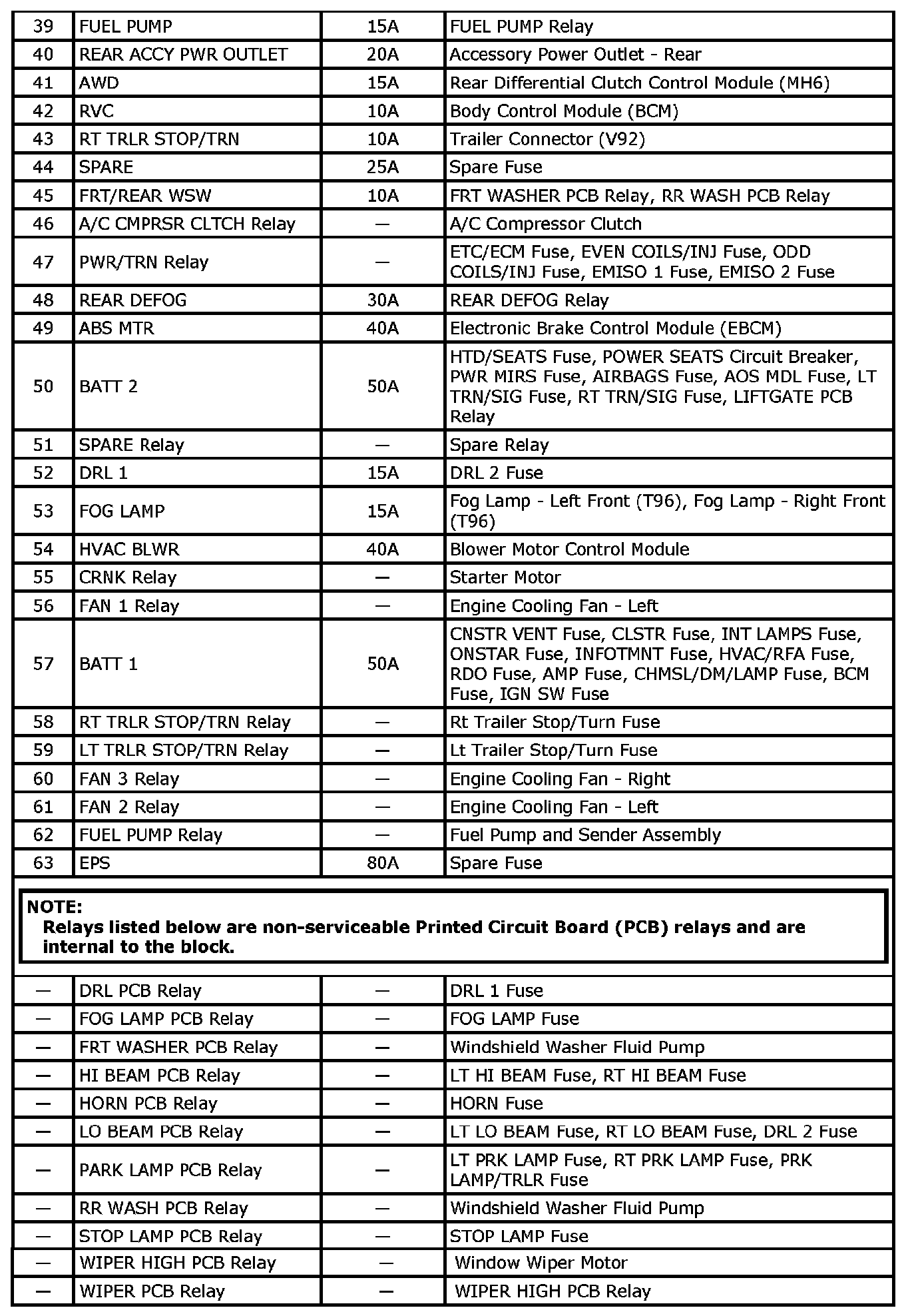

Fuse Block - Underhood Label Usage (Part 3):

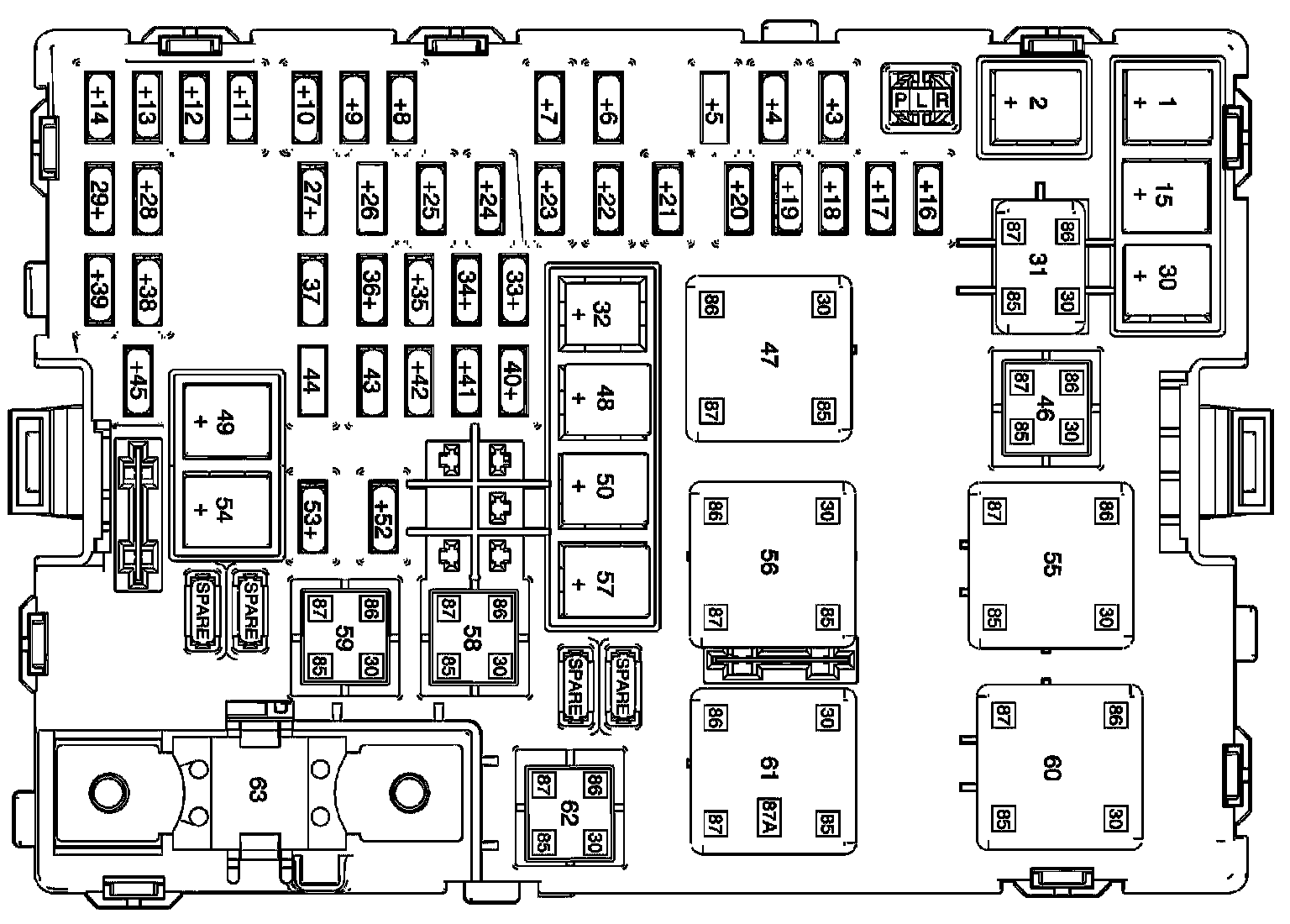

Fuse Block - Underhood Top View

Fuse Block - Underhood Top View:

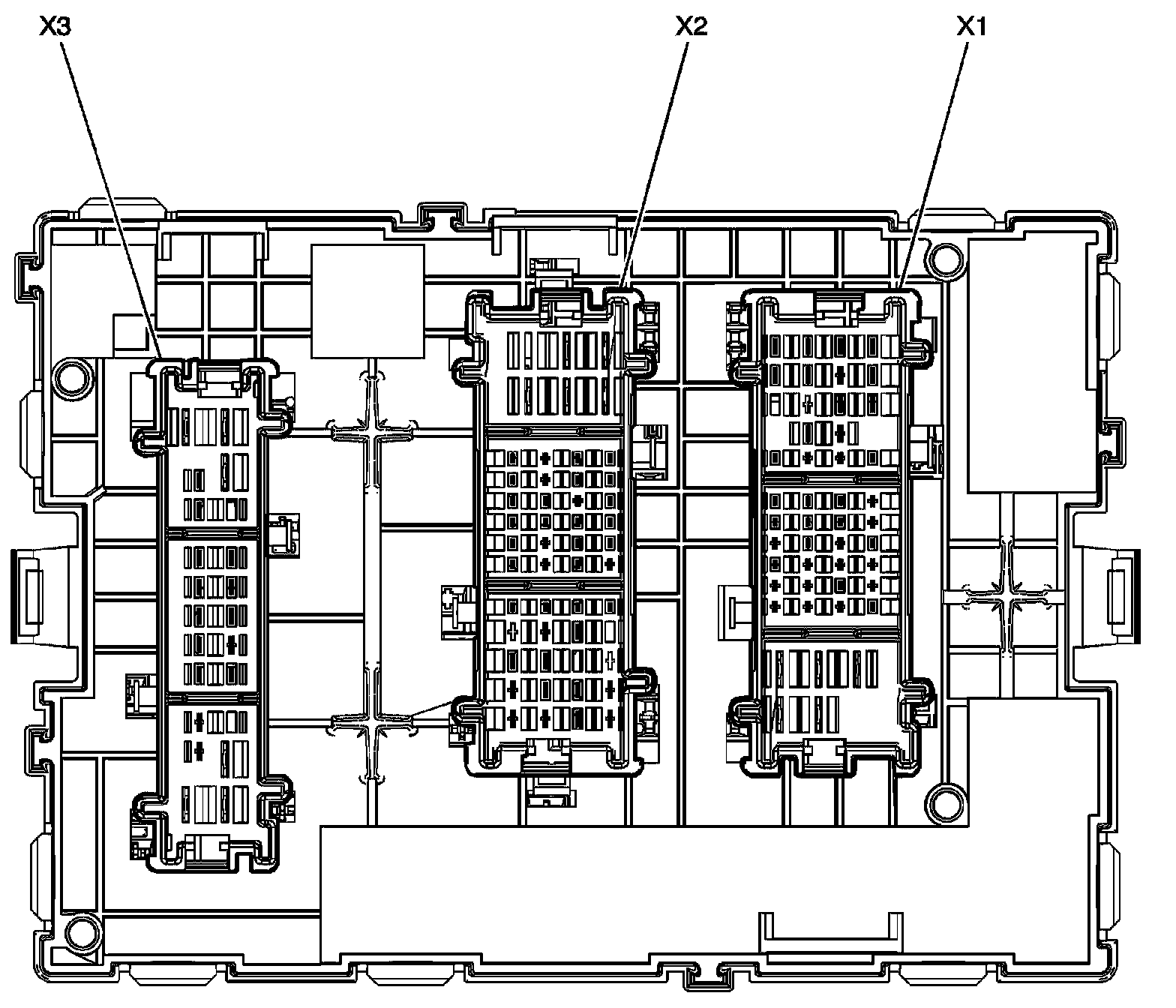

Fuse Block - Underhood Bottom View

Fuse Block - Underhood Bottom View:
