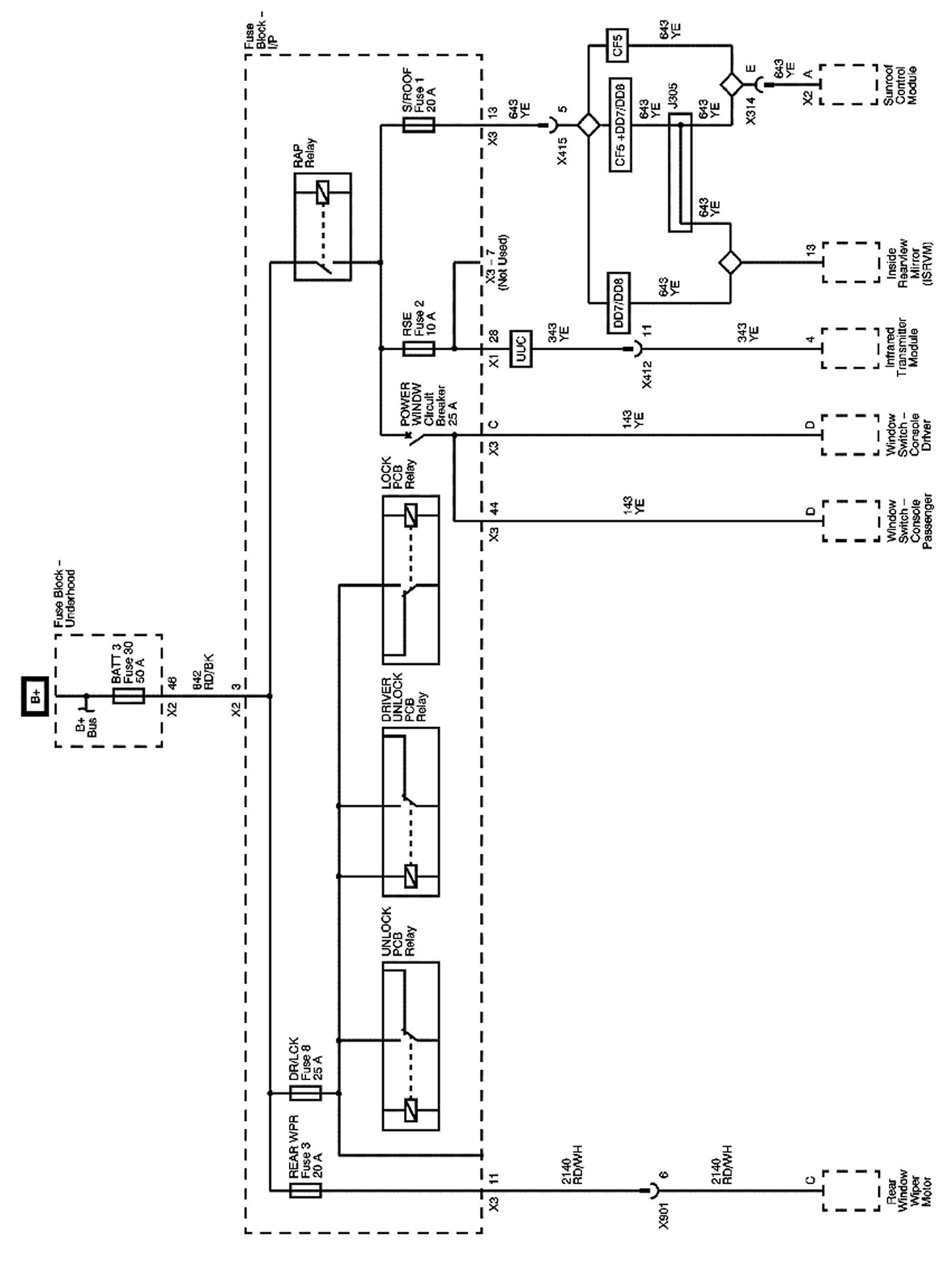

Power Distribution Diagram 6

BATT MAIN 3, DR/LCK, RRWPR, RSE/KEY CAPTR and S/ROOF Fuses and POWER WNDW






Next Diagram: Power Distribution Diagram 7

Previous Diagram: Power Distribution Diagram 5

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
