Water Outlet Installation

Water Outlet Installation

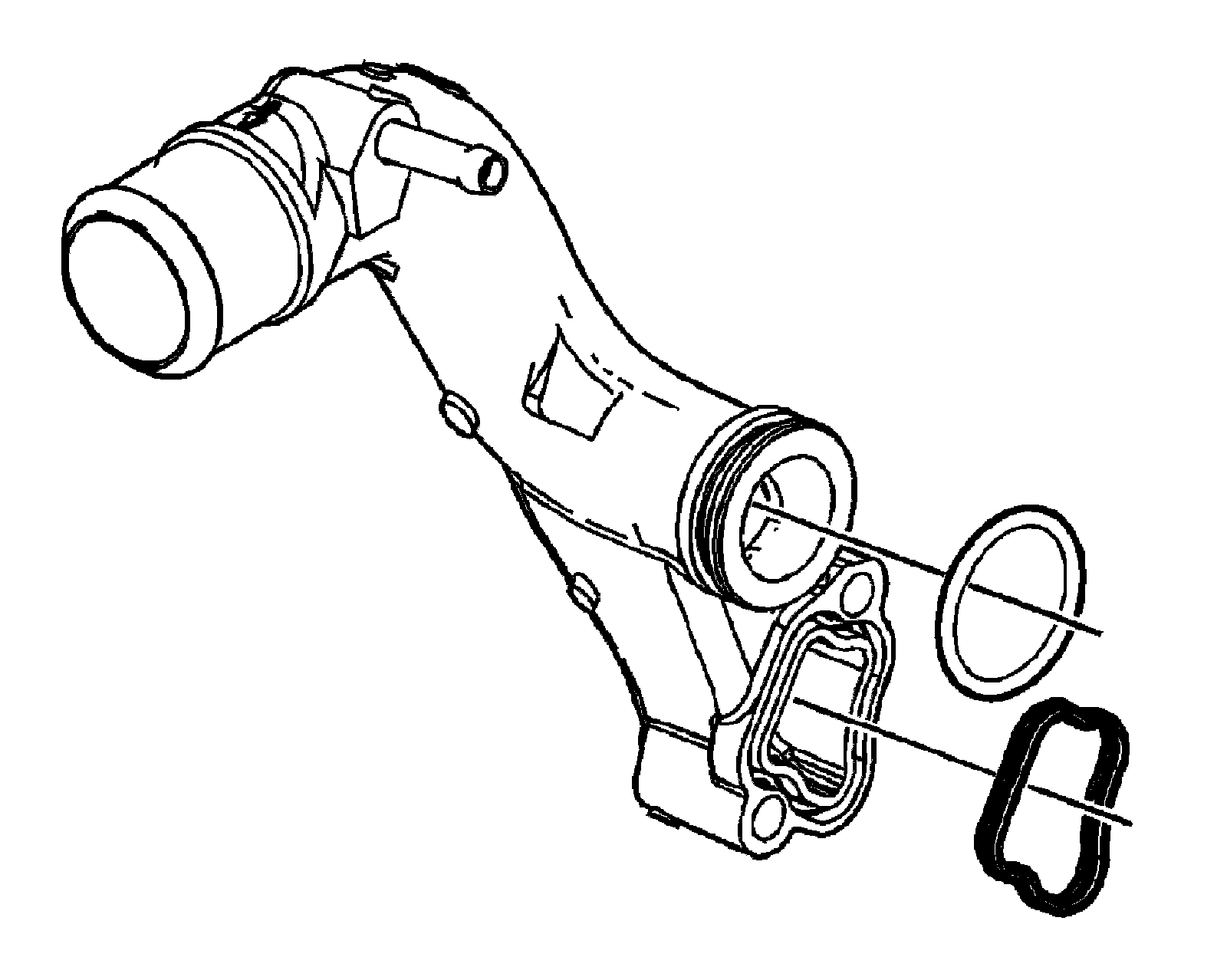

1. Install a NEW gasket and O-ring onto the water outlet.

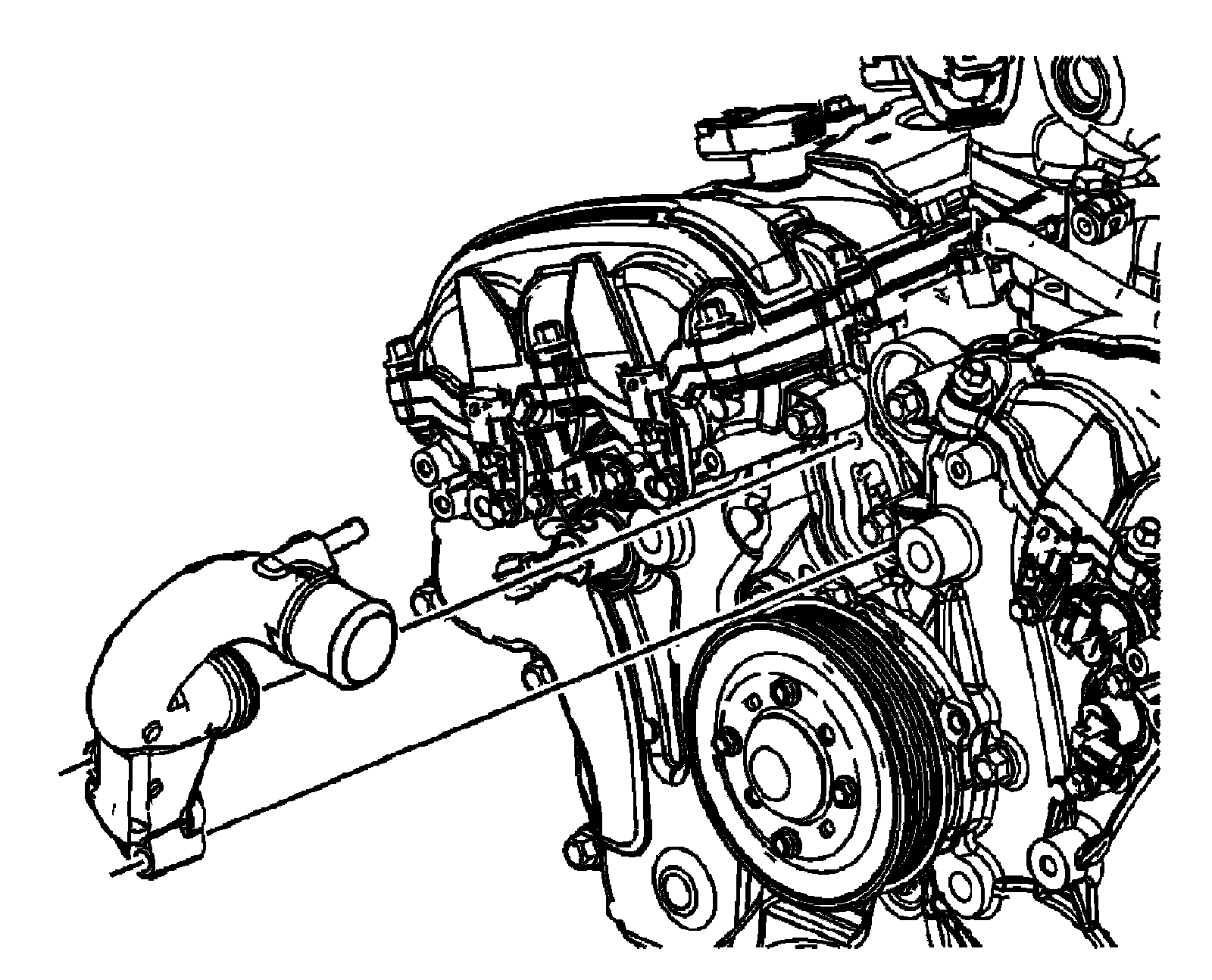

2. Install the water outlet.





CAUTION:
Refer to [Fastener Notice].

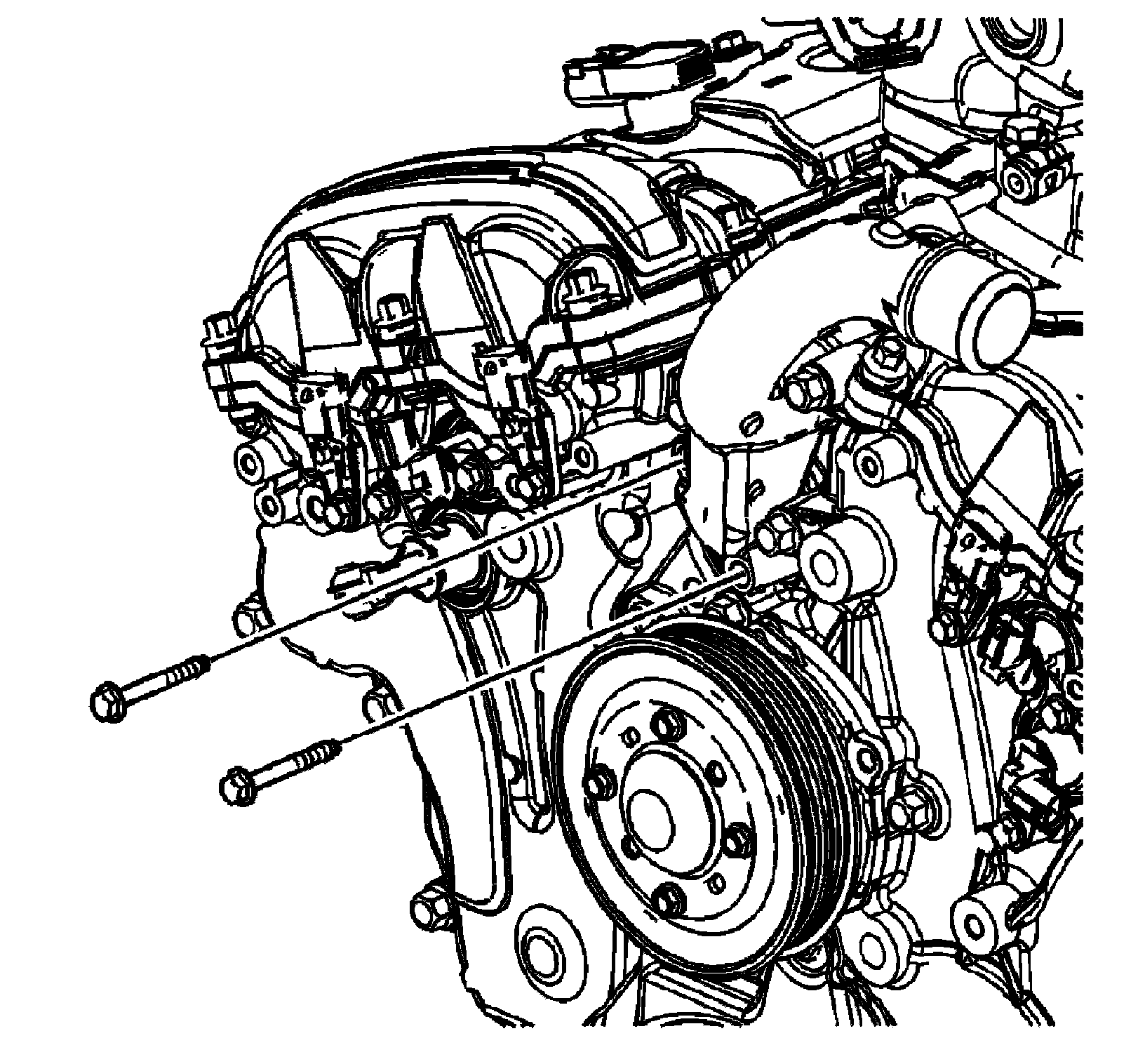

3. Install the water outlet bolts.
Tightening torque
Tighten the water outlet bolts to 10 Nm (89 lb in).

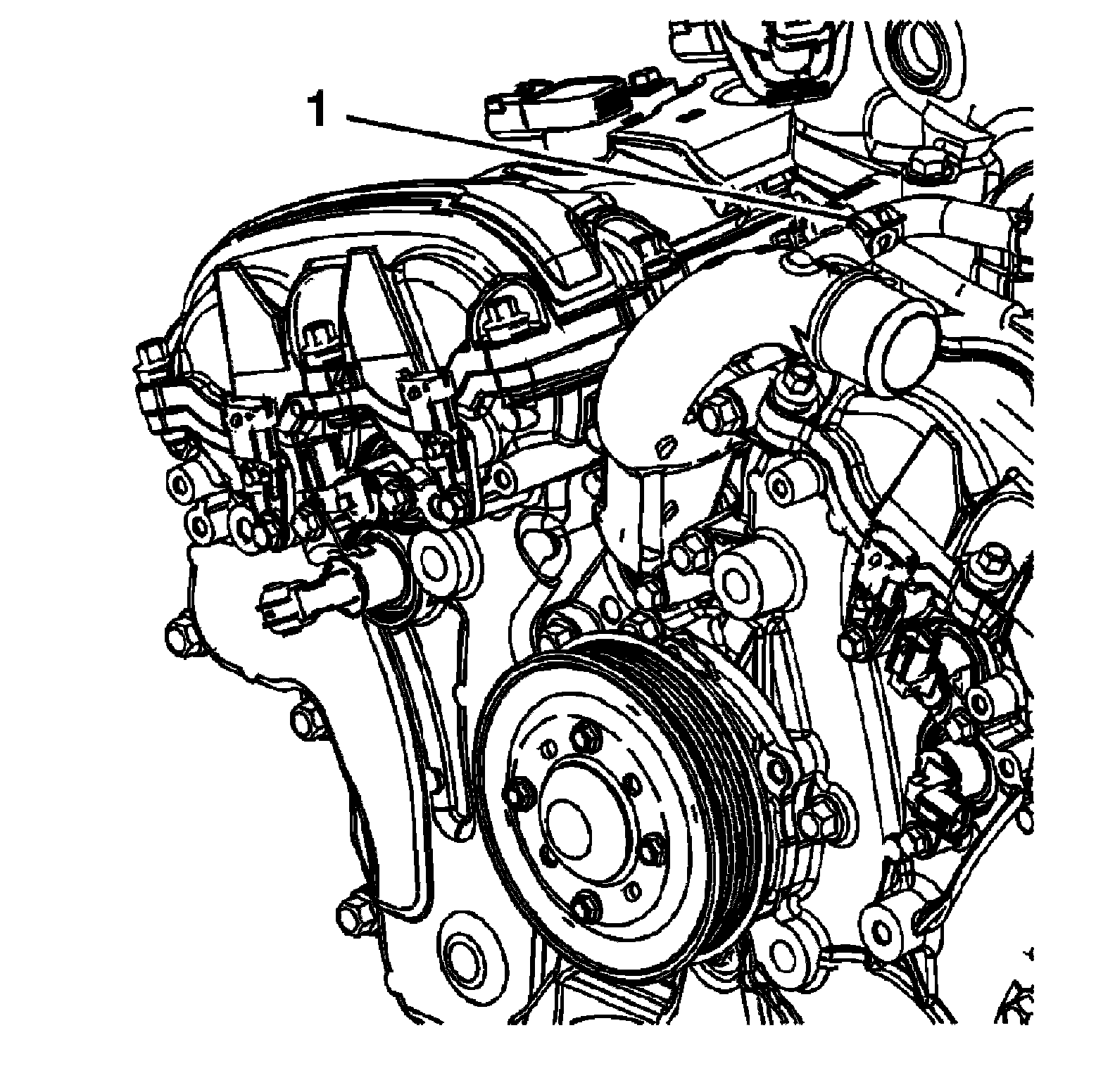

4. Connect the engine coolant air bleed hose (1) to the water outlet.
