Valve Rocker Arm Replacement - Left Side

Valve Rocker Arm Replacement - Left Side

Removal Procedure
1. Remove the applicable camshaft(s).

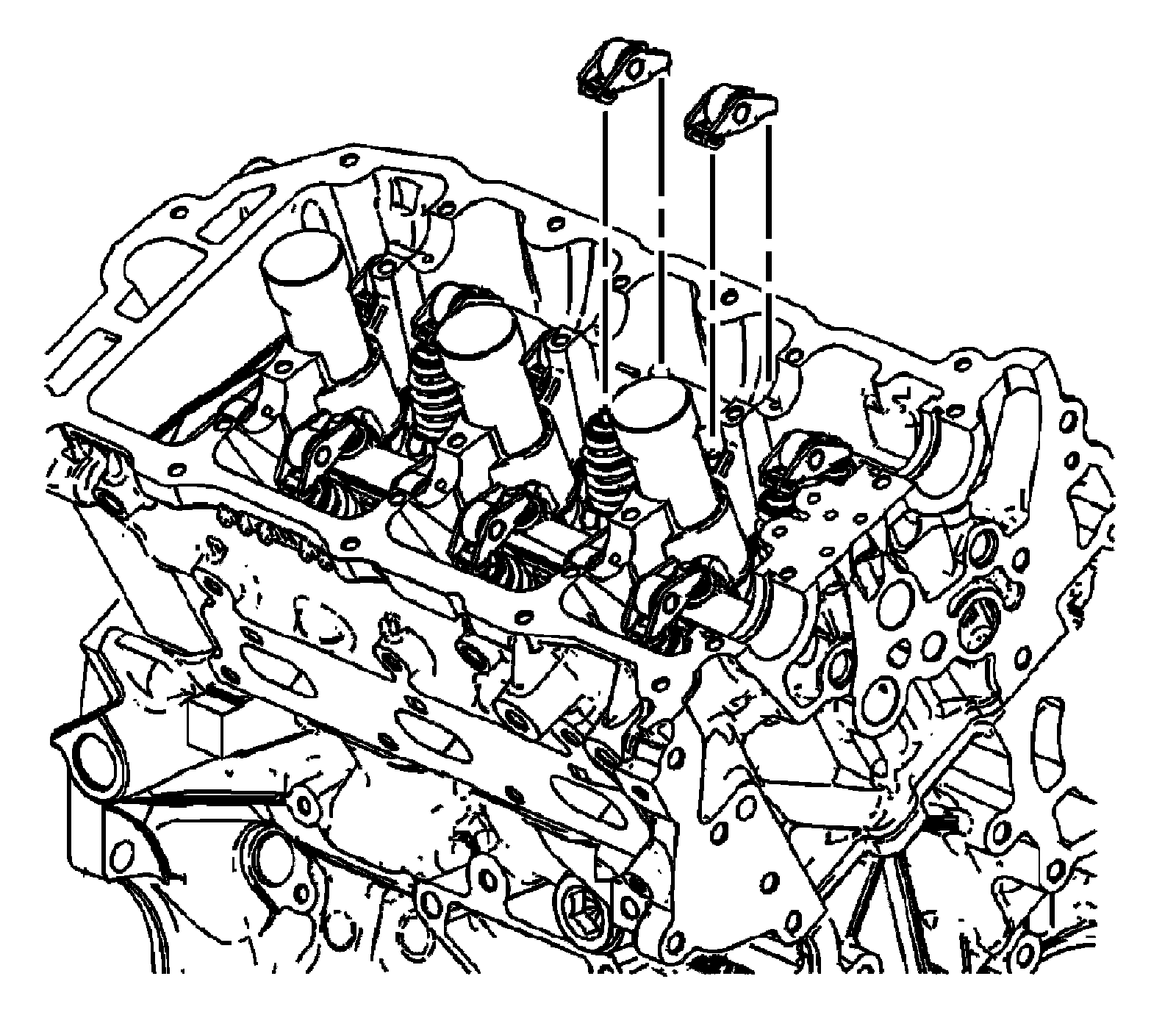

2. Remove the rocker arms.
3. Clean and inspect the camshaft(s) and the rocker arm(s). Repair or replace as necessary.

Installation Procedure

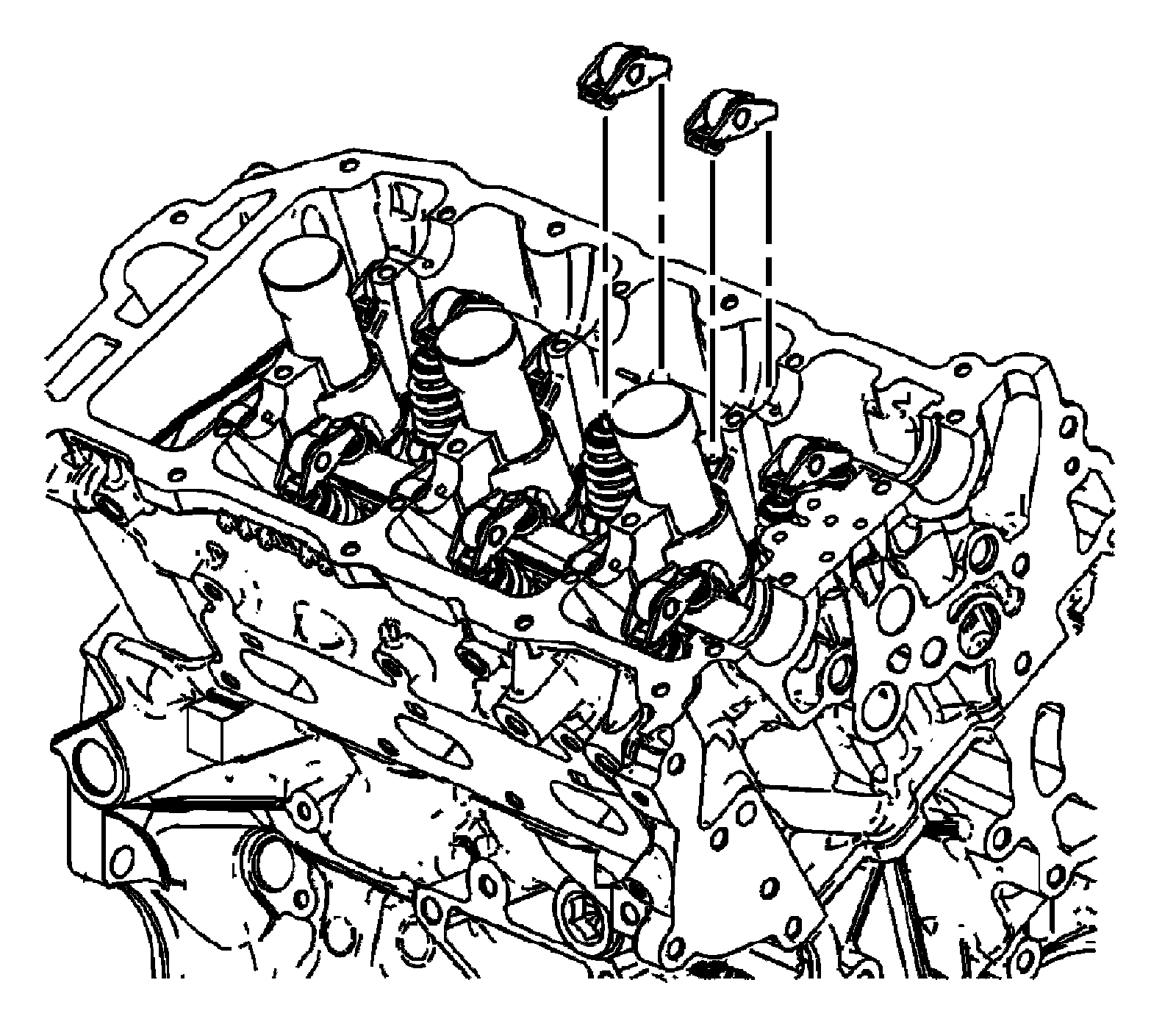

1. Install the rocker arms.
2. Install the applicable camshaft(s).
