Electronic Brake Control Module: Locations

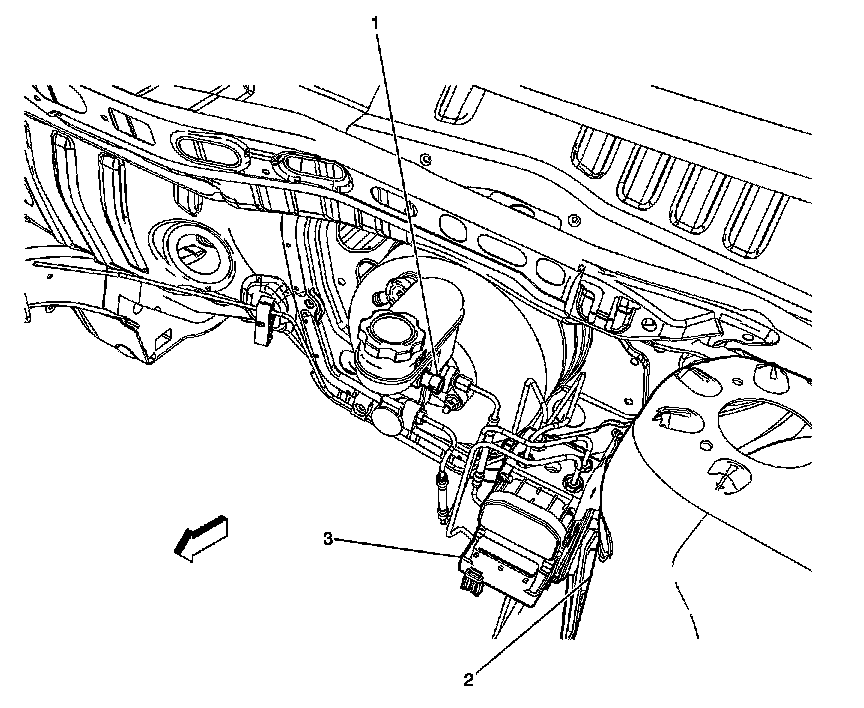

Hydraulic Brake Component Views





1. Brake Fluid Level Switch
2. LF Strut Tower
3. Electronic Brake Control Module (EBCM)
