Front Side Door Window Channel
Front Side Door Window Channel ReplacementRemoval Procedure
1. Remove the front door window.
2. Remove the front door window weatherstrip run channel assembly.
3. Remove the outside rearview mirror.
4. Remove the front door frame applique.

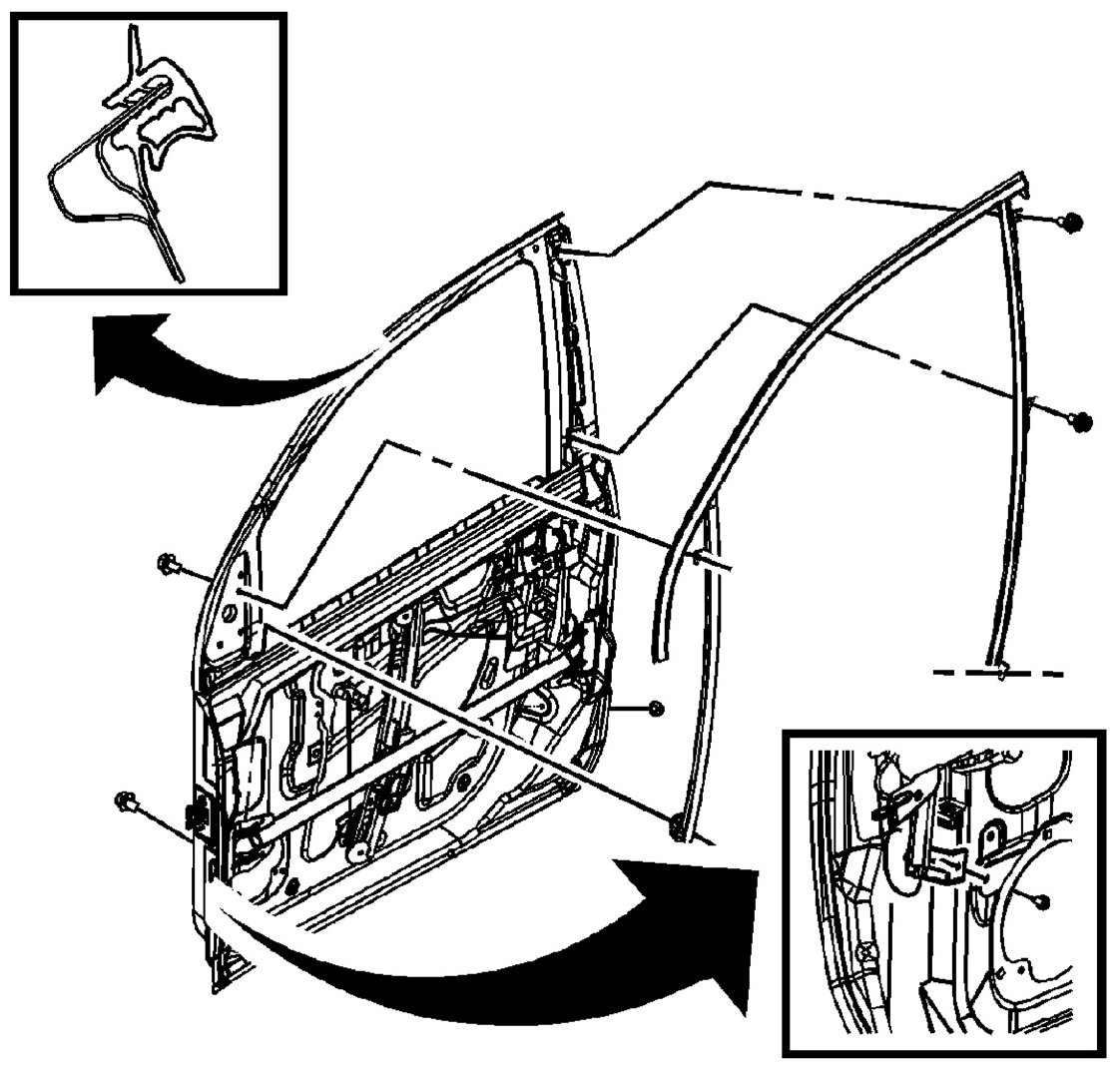

5. Remove the window run channel bolts.
6. Remove the front door window run channel. Starting from the rear corner of the door, remove the seal from the door header flange.
Installation Procedure
CAUTION: Refer to [Fastener Notice] in Cautions and Notices.
1. Install the window run channel seal to the door header flange, starting from the rear corner.
Tightening torque
Tighten the bolts to 8 N.m (71 lb in).
2. Install the front door window weatherstrip run channel assembly.
3. Install the front door frame applique.
4. Install the outside rearview mirror.
5. Install the front door window.
