Rear Wheel Hub Assembly Inspection

Check noise and smooth rotation of wheel by rotating wheel. If it is defective, replace wheel hub assembly.

Fig 1: Checking Rear Wheel Bearing And Wheel Hub
Courtesy of SUZUKI OF AMERICA CORP.
Measure thrust play of wheel hub using dial gauge as shown in figure. When the thrust play exceeds limit, replace wheel hub assembly.
Rear wheel hub thrust play limit

"a": 0.1 mm (0.004 in.)

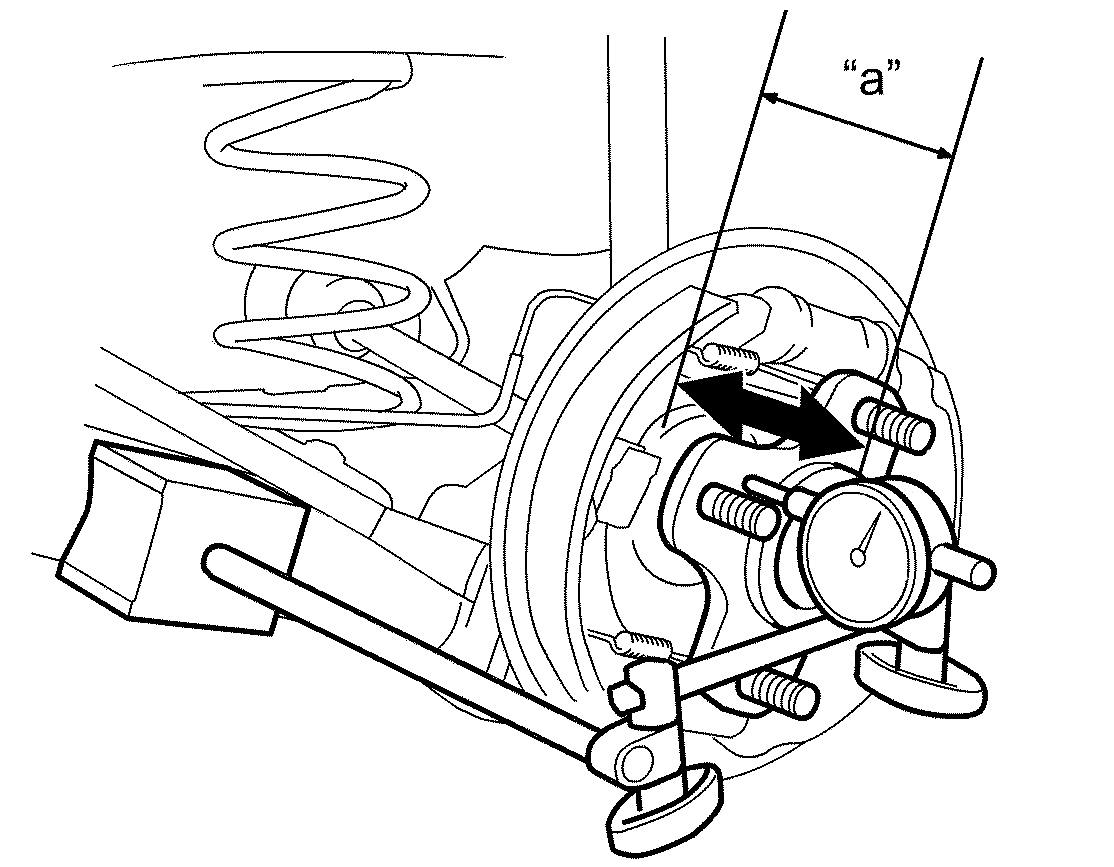

Fig 2: Measuring Thrust Play
Courtesy of SUZUKI OF AMERICA CORP.
