Front Suspension Frame, Stabilizer Bar and/or Bush Removal and Installation (2WD Model): Removal

Disconnect negative (-) cable at battery.
Remove air cleaner assembly referring to AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
Remove hood referring to HOOD REMOVAL AND INSTALLATION .
For hydraulic P/S model, take out fluid in P/S fluid reservoir with syringe or such.
Disconnect steering lower shaft from pinion shaft referring to STEERING LOWER SHAFT REMOVAL AND INSTALLATION .
Hoist vehicle and remove front wheels.
Remove exhaust No. 1, No. 2 and center pipes referring to EXHAUST SYSTEM COMPONENTS .
Remove suspension control arms and disconnect stabilizer joints.
Disconnect tie-rod end from steering knuckle referring to TIE-ROD END REMOVAL AND INSTALLATION (HYDRAULIC TYPE) .
For hydraulic P/S model, disconnect high pressure pipe and low pressure return hose referring to P/S PUMP REMOVAL AND INSTALLATION (HYDRAULIC TYPE) .
For electric P/S model, disconnect torque sensor connector and P/S motor connector from steering gear case referring to STEERING GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION (ELECTRIC TYPE) .
Support engine assembly by using chain hoist (1).

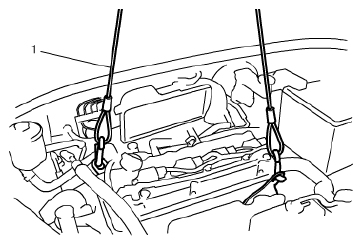

Fig 1: Identifying Chain Hoist On Engine Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Support front suspension frame (2) with mission jack (1).

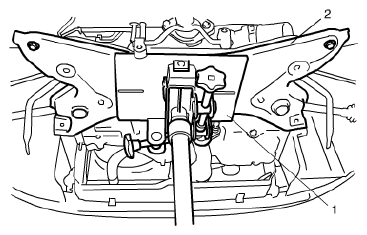

Fig 2: Supporting Front Suspension Frame With Mission Jack
Courtesy of SUZUKI OF AMERICA CORP.
Remove engine rear mounting, mounting member bolt and front suspension frame mounting bolts (1).

Fig 3: Identifying Front Suspension Frame Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Lower front suspension frame and steering gear case.
Remove steering gear case assembly from front suspension frame.
Remove stabilizer bar (1) with bush from suspension frame (2).

Fig 4: Identifying Suspension Frame And Stabilizer Bar
Courtesy of SUZUKI OF AMERICA CORP.
